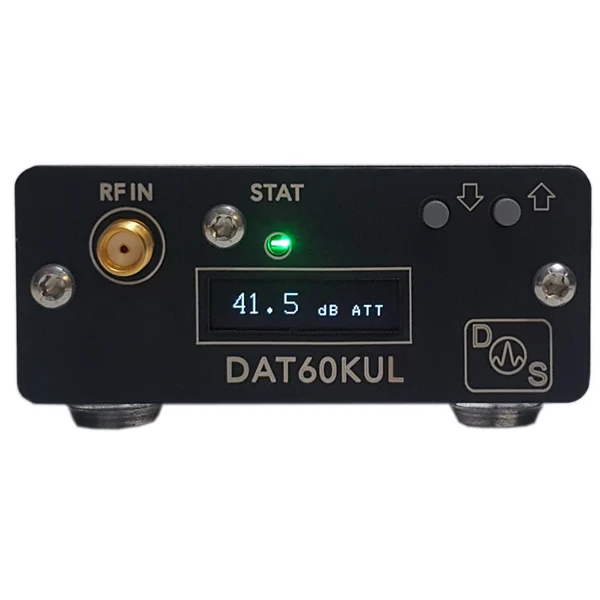

DS Instruments DAT60KUL 24GHz Low-Loss Digital Attenuator

Features:

• SCPI command support via USB COM port
• Front buttons and convenient OLED display
• Audio feedBack
• Power: 5v standard Micro-USB
• PC control software included
• Ethernet Included as standard!
• Ultra-precision 26GHz impedance-matched microwave SMA RF connectors

The cutting-edge DAT60KUL Digital Programmable Microwave Attenuator is a stand-alone, USB, and Ethernet controlled digital attenuator with 0.5dB steps, 0 to 60dB range, and ultra-low insertion loss. This high-frequency, wideband device features a bright OLED display and front user control buttons. Input frequency range is extremely wideband covering from 1GHz to 24GHz. No host PC is required to use this device. Automated scripted control is simple, requiring no extra drivers, just a system-standard virtual COM port connection and SCPI based text commands.

Common RF Applications:

• Automated testing environments
• General RF Lab use
• Control Systems
• Cellular equipment testing
• Production verification
• Educational / university lab use
• Aerospace /Defense Research
• Radar
• Phased array applications

RF Attenuator PC Control Application:

DAT60KUL Programmable Attenuator Performance:

Insertion loss plot shown above:

Technical Details
