Features:
- Front gain control buttons
- Precision 2.92mm RF input and output ports
- Standard USB-C 5VDC power input
- Compact aluminum enclosure
- Status LEDs and audible alerts
- Temperature, voltage, current monitoring
- USB control

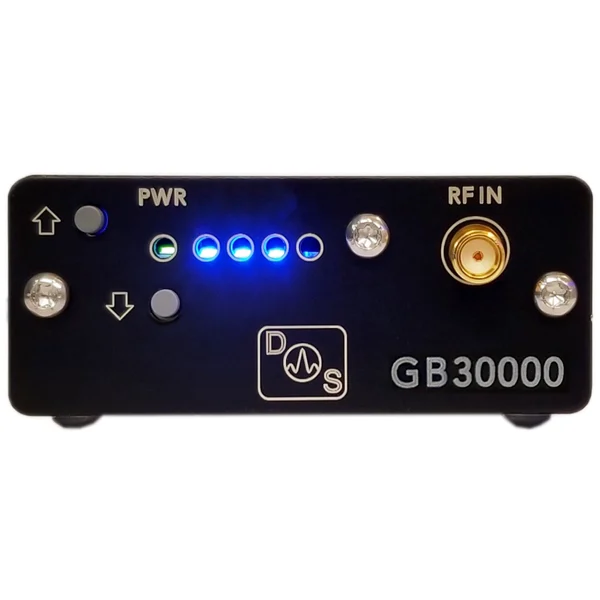

The wideband GB30000 provides a compact and affordable way to amplify signals from 20-30GHz for a variety of Ka and K-band applications. Simple USB-C power input and control makes this device much faster to integrate, and more flexible than traditional multi-voltage lab-supply powered devices. All negative voltage generation, gate control biasing, current limiting, temperature monitoring, and voltage detection are done internally automatically.
GB30000 Applications:
- Automated testing environments
- Satellite signal amplification
- Production verification
- Educational / university lab use
- Aerospace / defense research
- Wireless infrastructure
- Antenna research
- Communication link design
Small Signal Gain (Max Setting):
Free PC Control Software:
40GHz Rated 2.92mm Connectors:
Technical Details
| Frequency Range | 20 – 30GHz |
| Amplifier Max Gain Setting | +25dB typical |
| Gain Control Step Size | 0.5dB |
| Gain Control Range | 30dB |
| p1dB | +21dBm |
| Saturated Power | +23dBm |
| Max input power | +10dBm |
| IP3 | +33dBm |
| Noise Figure | 5dB |
| Return Loss | ~6dB typical |
| USB Current Requirement | <0.75A |
