Features:
- Excellent gain flatness
- 50 Ohm matched (SMA)
- Standard USB-C 5v power input
- Gain control buttons

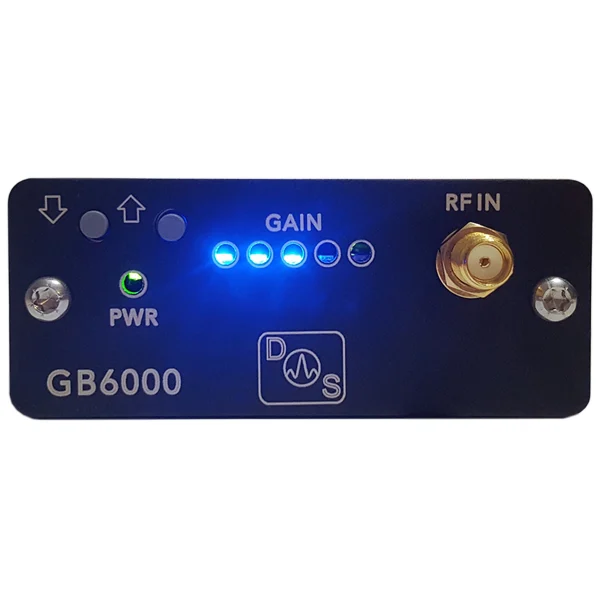

The wideband GB6000L provides a convenient and inexpensive way to amplify signals from 10-6000MHz for many different projects and applications. USB power and digital gain control makes this device much faster to integrate, and more flexible than traditional lab-powered devices. Gain can be set from the user control buttons on the front panel, USB COM port, or from device memory. Wideband frequency range covers 10-6000MHz in a single model!
6000MHz Variable-Gain Amplifier Applications:
- Automated testing environments
- General RF lab use
- Production verification
- Educational / university lab use
- Aerospace / defense research
- Wireless infrastructure
- Antenna research
- Communication link design
Typical Small Signal Gain (max setting):
Technical Details
| Frequency Range | 10MHz – 6GHz |
| Amplifier Gain (Max setting) | +28dB Typical |
| Amplifier Gain (Min setting) | 0dB Typical |
| p1dB | +22dBm |
| Noise Figure | 4dB |
| IP3 | 34dBm |
| Connectors | 18GHz Microwave Gold SMA |
| Gain step size | 0.5dB |
| Return Loss | > 12dB |
| Dimensions | 2.75″ x 1.25″ x 2.15″ |
