Features:
- USB powered from Laptop, battery-pack, Smartphone Charger, PC…
- Compact, rugged aluminum enclosure
- Internal harmonic filtering
- Bright and efficient OLED display
- Simple and effective control interface
- Industry standard virtual COM port serial commands
- Ultra-premium gold 50-ohm 18-GHz microwave SMA ports
- Internal precision ultra-low noise reference frequency source

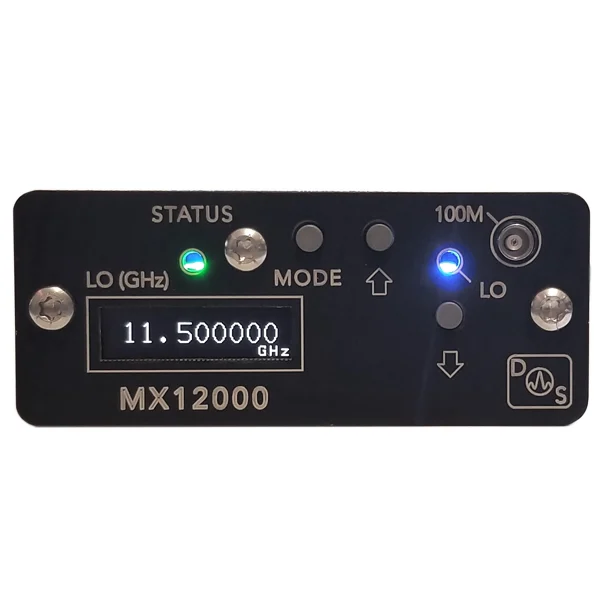

The MX12000 is a high-performance general-purpose microwave mixer with integrated programmable wideband local oscillator. LO frequency can be set with front controls, USB commands, or the provided windows PC application. Using its ultra-low noise internal reference source the LO signal has extremely low phase noise. The MX12000 makes an extremely convenient upconverter or downconverter by eliminating the need for extra cabling and a separate bulky, expensive high-frequency signal source.
Typical Mixing Applications:
- General microwave lab applications
- Receiver development
- Communications applications
- Satellite uplink / downlink testing
- Radar systems
- Defense / electronic warfare
Performance Plots:
Technical Details
| Integrated 5.5 – 13GHz programmable local oscillator | Yes |
| IF range | 5 to 6000MHz |
| RF range | 5 – 14GHz |
| RF input P1dB | > +10dBm |
| Low LO leakage | <-30 dB typical |
| LO phase noise at 6GHz (10KHz offset) | -99dBc |
| LO phase noise at 12GHz (10KHz offset) | -95dBc |
| Low conversion loss | 6-10dB typical |
| Return loss | > 10 dB |
| Reference source | ±280PPB 10MHz TCXO & 100MHz VCXO |
