Features:
- Micro-USB powered from Laptop, battery-pack, Smartphone Charger, PC…
- Compact, rugged aluminum enclosure
- Bright and efficient OLED display
- Simple and effective control interface
- Industry standard virtual COM port serial commands
- Ultra-premium gold 50-ohm microwave SMA ports
- Internal precision reference frequency source
- Reference input and output MCX ports (10MHz & 100MHz)

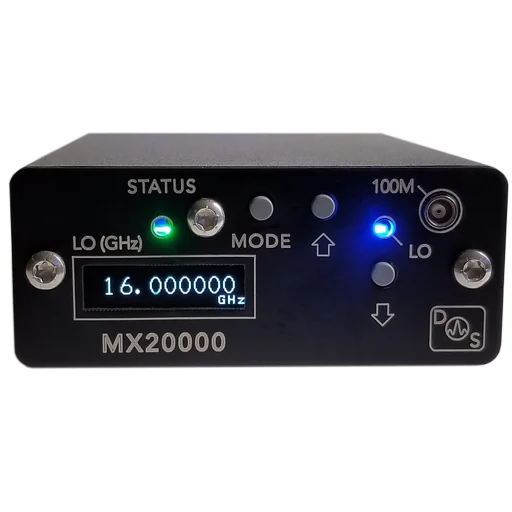

The MX20000 is a wideband high-performance general purpose microwave double-balanced mixer with integrated 12GHz – 22GHz Local Oscillator. LO frequency can be set with front controls, USB commands, or the provided windows PC application. Using its ultra-low noise internal reference source, the LO signal has extremely low phase noise. The MX20000 makes a convenient upconverter or downconverter by eliminating the need for extra cabling and a separate bulky, expensive, high-frequency signal source.
Typical Mixing Applications:
- General microwave lab applications
- Receiver development
- Communications applications
- Satellite uplink / downlink testing
- Radar systems
- Defense / electronic warfare
MX20000 – LO Phase Noise:
Technical Details
| Integrated 12 – 22GHz low-noise programmable local oscillator | Yes |
| RF range | 10 – 22GHz |
| IF range | LF to 6GHz |
| High RF input P1dB | > +12 dBm |
| Low LO leakage | <-30 dB typical |
| LO phase noise at 18GHz (10KHz offset) | ~85 dBc |
| Low conversion loss | 8-12dB typical |
| Return loss | 10 dB typical |
| Reference Frequency | ±280PPB 10MHz TCXO & 100MHz VCXO |
