Features:
- USB-C powered from Laptop, battery-pack, Smartphone Charger, PC…
- Compact, rugged aluminum enclosure
- Adjustable LO power
- Bright and efficient OLED display
- Simple and effective control interface
- Industry standard virtual COM port serial commands
- Premium gold 50-ohm microwave SMA IF port
- Precision 2.92mm (40GHz rated) RF port
- Internal precision reference frequency source
- LO reference frequency input and output MCX ports
- Voltage input monitoring
- Included PC control software

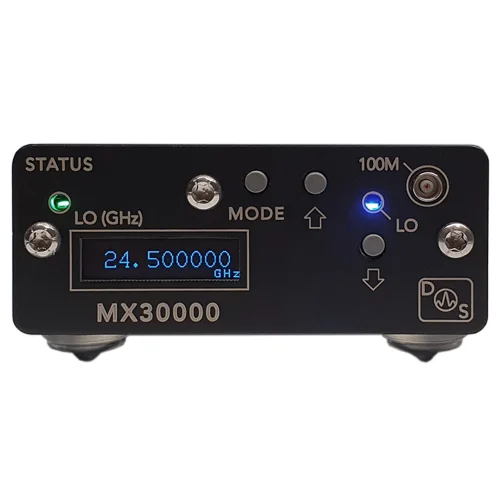

The MX30000 is a wideband high-performance general-purpose double-balanced microwave mixer with integrated 18GHz – 30GHz Local Oscillator. LO frequency can be set with front controls, USB commands, or the provided windows PC application. Using its ultra-low noise internal reference source, the LO signal has extremely low phase noise. The MX30000 makes a convenient upconverter or downconverter by eliminating the need for extra cabling and a separate bulky, expensive, high-frequency signal source.
Typical RF Mixing Applications:
- General microwave lab applications
- Receiver development
- VSAT
- Electronic countermeasure
- Communications applications
- Satellite uplinks / downlinks
- Radar systems
- Defense / electronic warfare
- Space applications
- mm wave technology
- 5G testing
- K-Band and Ka-Band research
RF Performance:
Technical Details
| Integrated 12 – 22GHz low-noise programmable local oscillator | Yes |
| RF range | 15 – 30GHz |
| IF range | 1MHz to 8GHz |
| High RF input P1dB | +10 dBm |
| LO phase noise at 26GHz (10KHz offset) | ~85 dBc |
| Low conversion loss | 9-12dB |
| Max RF input power | +17dBm |
| Typical IP3 | 20dBm |
| LO frequency step size | 10Hz |
| Typical LO to RF isolation | 45dB |
| Typical LO to IF isolation | 35dB |
| Return loss | >10 dB typical |
| Reference Frequency | ±280PPB 10MHz TCXO & 100MHz VCXO |
