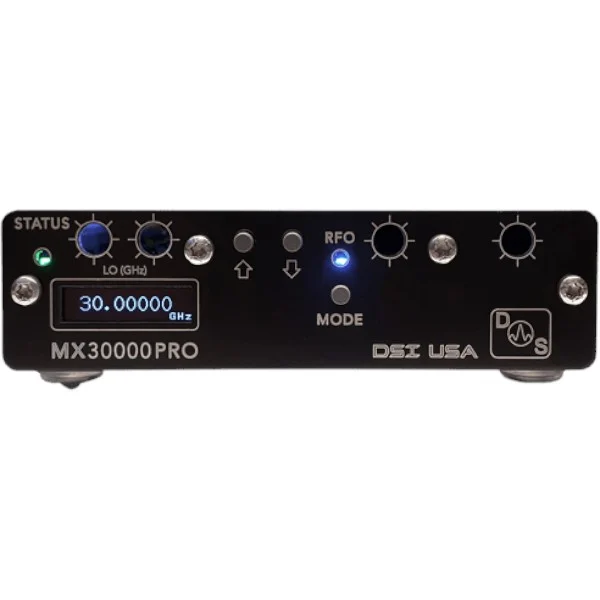

DS Instruments, MX30000PRO, 15-30GHz High-Performance Microwave Mixer with 17- 30GHz Programmable Low-Noise Local Oscillator
Features:
- 15-30GHz high-performance microwave mixer with integrated 17-30GHz programmable LO source
- Ultra-stable 10MHz internal reference source, low conversion-loss, low phase-noise.
- Dual USB-C powered from Laptop, battery-pack, Smartphone Charger, PC…
- Internal LO harmonic filtering
- Adjustable LO power
- Bright and efficient OLED display
- Simple and effective control interface
- Industry standard virtual COM port serial commands
- Premium gold 50-ohm microwave SMA IF port
- Precision 2.92mm (40GHz rated) RF port
- An internally upgraded precision reference frequency source
- LO reference frequency input and output MCX ports
- Voltage input monitoring
- Compact, rugged aluminum enclosure
- Included PC control software
- Standard Ethernet connection
Typical RF Mixing Applications:
- General microwave lab applications
- Receiver development
- VSAT
- Electronic countermeasure
- Communications applications
- Satellite uplinks / downlinks
- Radar systems
- Defense / electronic warfare
- Space applications
- mm wave technology
- 5G testing
- K-Band and Ka-Band research
The MX30000PRO is a wideband high-performance general-purpose double-balanced microwave mixer with integrated 18GHz – 30GHz Local Oscillator. LO frequency can be set with front controls, USB commands, or the provided windows PC application. Using its ultra-low noise internal reference source, the LO signal has extremely low phase noise. The MX30000PRO makes a convenient upconverter or downconverter by eliminating the need for extra cabling and a separate bulky, expensive, high-frequency signal source.
Technical Details
| IF range | 10MHz to 8GHz |
| RF range | 15 – 30GHz |
High input P1dB
