Features:
- SCPI command support via USB COM port
- Front buttons and convenient graphical OLED display
- Power: 5v standard micro USB cable
- Premium microwave-rated SMA RF connectors
- Very low power requirements
- Laser-etched solid aluminum enclosure
- Audio feedBack

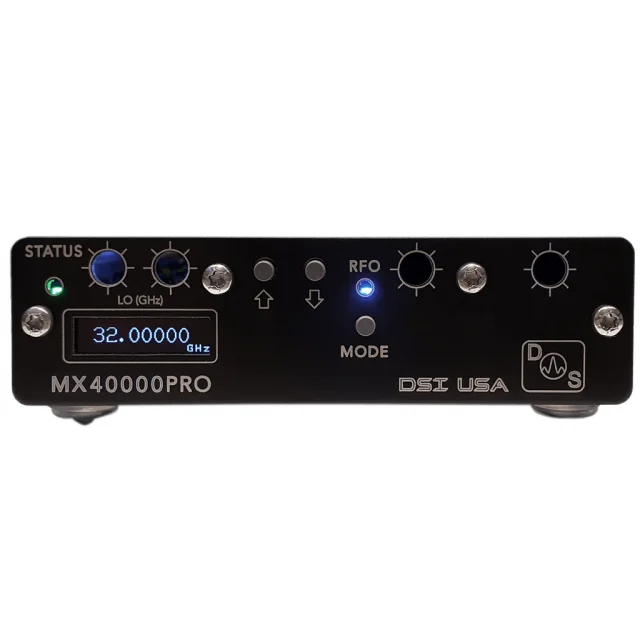

The MX40000PRO is a wideband high-performance general purpose microwave double-balanced mixer with integrated 25GHz – 40GHz programmable LO generator. LO frequency can be set with front controls, or the provided windows PC application via USB or Ethernet. Using its ultra-low noise internal oven-controlled reference source, the LO signal has extremely low phase noise. The MX40000PRO makes a convenient upconverter or downconverter by eliminating the need for extra cabling and a separate bulky, expensive, high-frequency signal source.
Typical RF Mixing Applications:
- General microwave lab applications
- Receiver development
- VSAT
- Electronic countermeasure
- Communications applications
- Satellite uplinks / downlinks
- Radar systems
- Defense / electronic warfare
- Space applications
- mm wave technology
- 5G testing
- Ka-Band research
Mechanical Specifications:
RF Performance:
Technical Details
| Integrated 25 to 40GHz programmable local oscillator | Yes |
| IF range | 10MHz to 18GHz |
| RF range | 18 to 41GHz |
| High input P1dB | > +10dBm |
| LO phase noise at 40GHz (100KHz offset) | <96 dBc |
| Low conversion loss | 12dB typical |
| Max RF input power | +18dBm |
| Typical IP3 | 20dBm |
| LO frequency step size | 10Hz |
| Typical LO-to-RF isolation | 35dB |
| Typical LO-to-IF isolation | 30dB |
| RF to IF isolation | 12-30dB |
| Return loss | >6dB typical |
| Reference frequency 1 | ±10PPB 10MHz high-stability OCXO |
| Reference frequency 2 | 100MHz low-noise VCXO |
