Features:
- SMA RF input and output ports
- Compact aluminum enclosure
- Status LEDs and audible alerts
- Temperature, voltage, current monitoring
- Micro-USB control port
- Simple plug-and-play operation with free PC control software
- 50-Ohm port impedance

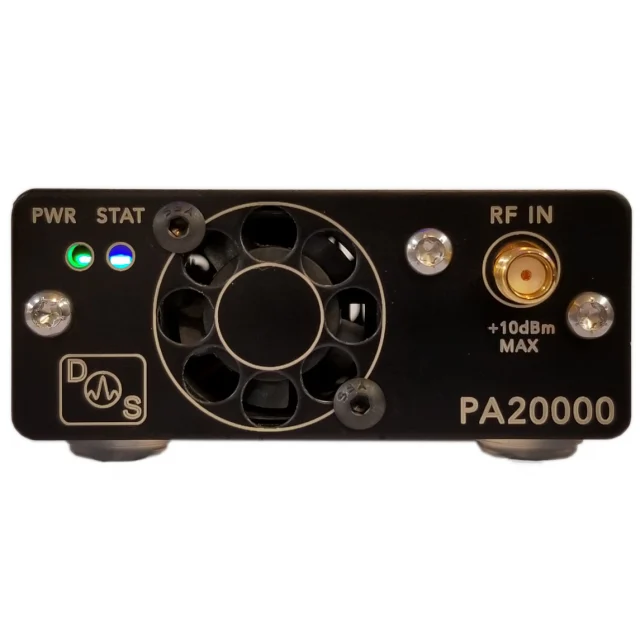

The wideband PA20000 provides a compact and affordable way to amplify signals from 5-20GHz for a variety of Ku-band applications. Simple USB-C control makes this device much faster to integrate, and more flexible than traditional multi-voltage lab-supply powered devices. All negative voltage generation, gate control biasing, current limiting, temperature monitoring, and voltage detection are done internally automatically. Only a single (included) 12VDC adapter is needed. Gain is adjustable from 0 to +28dB.
PA20000 Applications
- Automated testing environments
- Satellite signal amplification
- Production verification
- Educational / university lab use
- Aerospace / defense research
- Wireless infrastructure
- Antenna research
- Communication link design
Typical Gain Plot
Technical Details
| Frequency Range | 5 – 20GHz |
| Max amplifier gain | +28dB typical |
| Gain setting range | 0 to +28dB |
| Variable-gain step size | 0.5dB |
| P1dB | +29dBm |
| Psat | +31dBm |
| Max input power | +39dBm |
| IP3 | +39dBm |
| Return Loss | 10dB typical |
| Power input | 12VDC jack |
| Control connection | micro-USB (virtual COM) |
