Features:
- 18GHz Microwave Gold SMA connectors
- USB Type-C virtual com port
- Standard USB Type-C Power Input

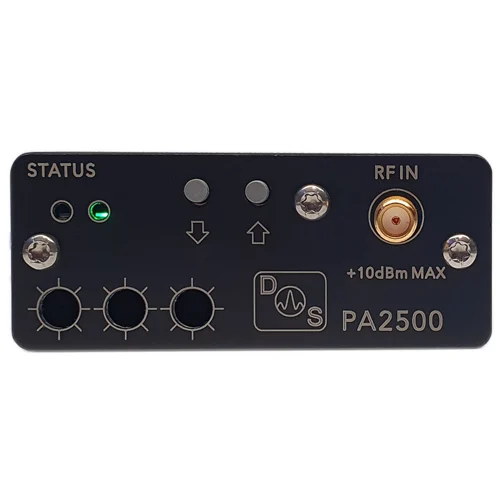

The PA2500L provides a convenient and flexible way to amplify signals from 5MHz-to 2.5GHz for a variety of RF applications. The USB Type-C port allows for easy integration into automated test environments using SCPI serial commands. Power and gain control along with temperature and voltage monitoring make this device much faster to setup and implement than competing devices. All linear regulation, gate biasing, and power-up sequencing are done internally by the onboard controller. This amplifier is powered from USB and does not need a separate adapter or input.
PA2500L Typical Applications
- Automated testing environments
- Production verification
- Educational / university lab use
- Aerospace / defense research
- Wireless infrastructure
- Antenna research
- Communication link design
- EMC testing
PC Control Software (USB):
Power Amplifier Performance Plots:
Technical Details
| Frequency Range | 5MHz – 2.5GHz |
| Amplifier Gain (Max) | ~30dB |
| Amplifier Gain (Min) | ~0dB |
| Gain step size | 0.5dB |
| Typical output power (P1dB) | +27dBm (1/2-Watt) |
| Saturated output power | >+29dBm |
| Noise figure | 5dB typical |
| Max input power (before damage) | +10dBm |
| Return Loss | > 12dB |
