Features:
- Ultra compact powder-coated aluminum case
- Audio feedBack
- Simple automated remote control interface
- Free PC control application
- Micro-USB powered and controlled
- Front control buttons and OLED display
- Premium gold 18GHz SMA ports
- High reliability solid-state design

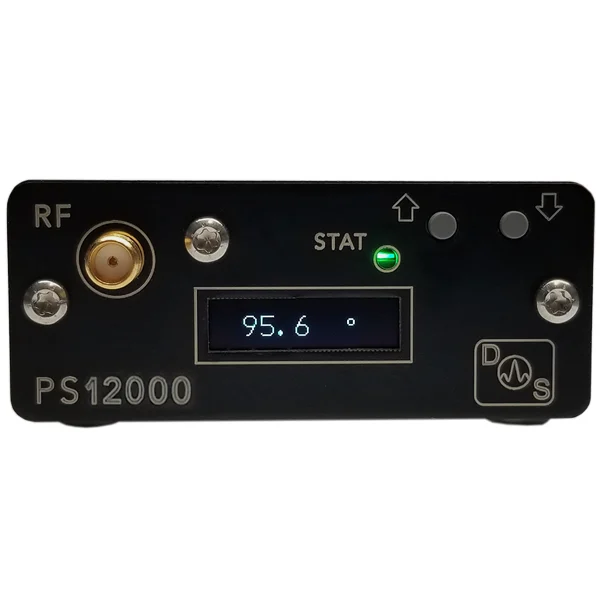

The PS12000 wideband RF Phase Shifter from DS Instruments provides handheld stand-alone and remote-controlled phase shifting from 0 to 355 degrees in 5.6-degree increments. This ultra-compact USB device features a graphic display and audio feedBack. Simple to use and integrate into automated test environments, the PS12000 is extremely attractive for many radar and X-band applications.
Typical RF Applications:
- Antenna systems
- Beam forming research
- Radar applications
- Phased-array technology
- RF signal cancellation
- Electronic warfare and defense
- Satcom
Windows Phase Shift Control Application:
Technical Details
| Frequency Range | 8000 – 12000 MHz |
| Angle Range | 0 – 355 degrees |
| Power Input Range | <+26dBm |
| Phase Resolution | 5.625 degrees |
| Insertion Loss | 7-8dB |
| Return Loss | > 10dB |
| Bi-directional design | Yes |
