Features:
- Ultra compact powder-coated aluminum case
- Audio feedBack
- Simple automated remote control interface
- Micro-USB powered
- Free PC control application
- Micro-USB powered and controlled
- Front control buttons and OLED display
- Premium gold SMA ports
- High reliability

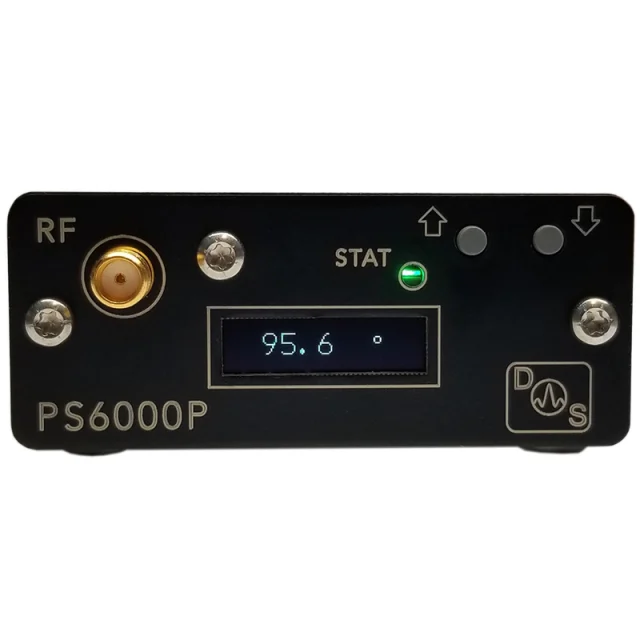

The PS6000P wideband RF Phase Shifter from DS Instruments provides handheld stand-alone and remote-controlled phase shifting from 0 to 355 degrees in 5.6-degree increments. This ultra-compact USB device features a graphic display and audio feedBack. Simple to use and integrate into automated test environments, the PS6000P is extremely attractive for many wideband applications.
Typical RF Applications:
- Antenna systems
- Beam forming research
- MIMO development
- Advanced LTE and WIFI
- Phased-array technology
- RF signal cancellation
- Electronic warfare and defense
Windows Phase Shift Control Application:
Technical Details
| Frequency Range | 2200 – 3800 MHz |
| Angle Range | 0 – 355 degrees |
| Power Input Range | <+26dBm |
| Phase Resolution | 5.625 degrees |
| Insertion Loss | 5dB typical |
| Return Loss | 10dB |
| Bi-directional design | Yes |
