Features:
- Calibrated output power on band 1 (Step and Vernier adjustable)
- High-power band 2 output
- Frequency-sweeping support (no PC needed once configured)
- External reference frequency input (MCX port – 10MHz)
- Internal / external auto-detect reference
- Professional industry standard SCPI command support
- Front frequency user frequency step buttons
- Front-mounted bright OLED display
- Sturdy all-aluminum black enclosure
- Simple and free Windows control GUI
- No drivers needed for PC control
- Standard Ethernet port
- Output Impedance: 50 Ohm
- RF Connectors: 2 x Gold Microwave SMA

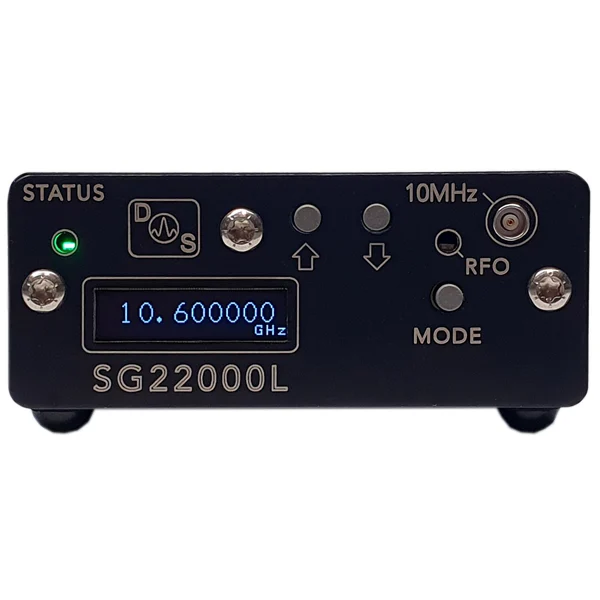

The incredibly compact SG22000L (replaces SG6000LDQ) Microwave Signal Generator delivers the widest frequency coverage on the market for its size and low price. The two output bands cover the ENTIRE range of 60 to 22000+ MHz. Output power is calibrated between -20 and +10dBm in 0.5dB steps up to 12.5GHz. The 12.5-22GHz band outputs a typical +15dBm signal for driving high power mixers or other Ku-band equipment. The crisp OLED display provides useful feedBack for the user, and front control buttons provide a quick alternative to USB control. The output waveform is fully synthesized using modern fractional-N synthesis. This synthesized signal source can automatically detect and accept an external 10 MHz reference OR it can use its own ±280PPB internal 10MHz TCXO reference. Like most of this products, the SG22000L easily fits in the palm of your hand, making it a truly portable and bench-space-saving device. Ethernet now comes standard (2023).
Common RF Applications:
- Automated testing environments
- Satellite Communications Testing
- General RF Lab use
- Flexible LO sourcing
- Antenna design
- EMC Testing
- KU-Band Development
- Production verification and testing
- Educational / university lab use
- Aerospace / Defense Research
PC Signal Generator Control Software:
Device Enclosure Size:
Microwave Performance Plots (details in full datasheet):
Technical Details
| Total Frequency Coverage | 60 – 22000MHz (24GHz at reduced performance) |
| Band 1 Range | 60 to 12500MHz |
| Band 1 Power | -20 to +10dBm (calibrated 0.5dB steps & fine-tune vernier) |
| Band 2 Range | 12500 to 22000MHz |
| Band 2 Power Level | +15dBm typical (fixed) |
| Phase Noise | 6GHz @ 10KHz offset: -88dBc/Hz |
| Phase noise at 6GHz | -72dBc @ 10KHz offset |
| Phase Noise | 12GHz @ 10KHz offset: -83dBc/Hz |
| Phase Noise | 18GHz @ 10KHz offset: -80dBc/Hz |
| Min frequency step size | 5Hz |
| Dimensions | 2.75″ x 1.25″ x 4.15″ |
| Input Voltage | 5V @ 1.0A (USB-C) |
| Internal Reference | 10MHz ±280PPB TCXO |
