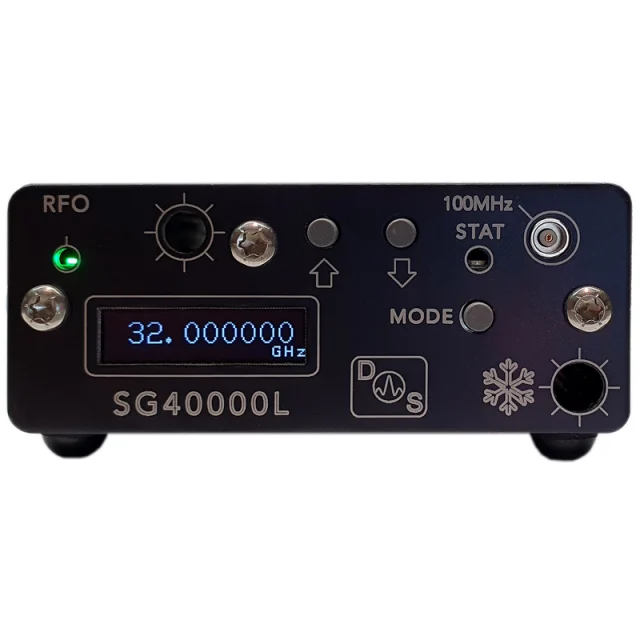

DS Instruments SG40000L 40GHz Compact Signal Generator

Features:

• Ultra-low-noise 100MHz VCXO locked to internal TCXO or external 10MHz reference
• MCX input for 10MHz clock source
• Compact powder-coated laser-etched enclosure
• Precision 2.92mm output jack (3.5mm compatible)
• Ethernet remote operation (DHCP)
• Windows control software included (USB & Network enabled)
• SCPI command aware via USB-C virtual COM port for remote control
• Front controls and bright OLED display for stand-alone usage
• Completely powered from USB-C, no DC adapter required!

DS Instrument’s high-frequency microwave signal generator has been released! This standard version offers the same low-noise performance of the SG30000L, but with a higher frequency band covering 25to 40GHz . Like SG6000 product line, this source is fully programmable via SCPI commands, or the front panel interface, making it more flexible than any competing product. High output power, wide bandwidth, and ultra-compact size make this the best value 40GHz source on the market.

Common microwave Applications:

• Automated testing environments
• General RF lab use
• Flexible LO sourcing
• Antenna design
• EMC testing
• Production verification and test setups
• Educational / university lab use
• Aerospace / Defense Research
• satellite link testing
• radar applications
• Ka-band development
• Up-converting and down-converting
• Wireless infrastructure design
• Transponder verification
• 5G testing
• mm-wave technology

PC Control Application:

Mechanical Specifications (5-inch narrow case):

Performance Plots (CW Output):

Technical Details
