Features:
- Non-reflective design
- 40GHz-rated precision 2.92mm RF connectors
- Solid-state reliability and speed
- Bi-directional topology
- Fast switching time
- LED port status indication
- Micro-USB powered
- Standard Ethernet port

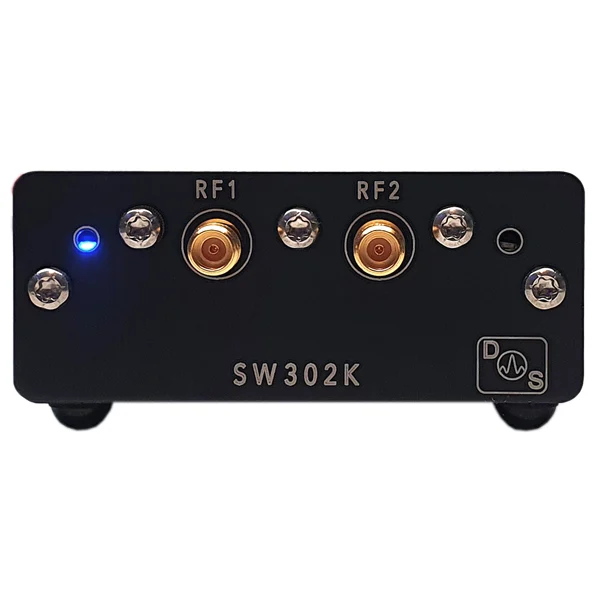

DS Instrument’s SW302K 2-way solid-state RF switch is powered via USB and controlled using a rear pushbutton switch, or SCPI commands via the USB virtual COM port or Ethernet connection. Status LEDs and audible feedBack make this device extremely user friendly for stand-alone usage and remote scripted operation. This non-reflective high-frequency two-port switch is perfect for many high frequency automated test setups including 5G development. Fast switching time and an affordable price point make this the best high-frequency switch on the market. No special drivers are needed to send serial commands from any operating system or host device.
Common Applications:
- Automated testing environments
- General RF Lab use
- Production verification
- Educational / university lab use
- Aerospace / Defense Research
- Communications Development
- 5G testing
Wideband Insertion Loss Plot:
Technical Details
| Max RF input power | +25 dBm |
| Low insertion loss | <5dB Typical |
| Return loss | > 6dB |
| Frequency range | 1 – 30GHz |
| Superior isolation | 40dB typical |
| Impedance | 50 Ohm |
