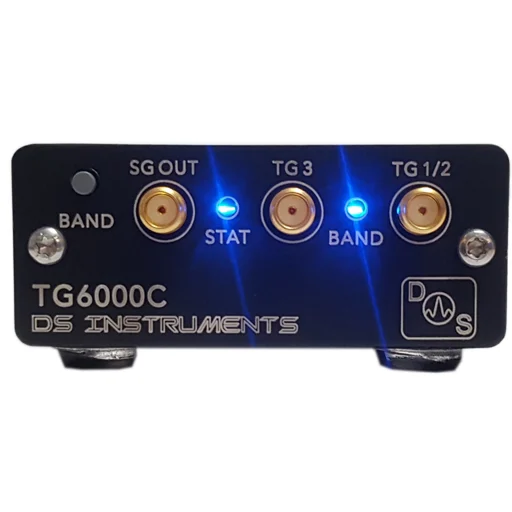

DS Instruments TG12000 12GHz Tracking Signal Generator

Features:

• Two completely independent signal source channels
• Stand-alone and USB remote operation
• Wide output frequency range
• Adjustable output power (Independent Step & Variable)
• Industry-standard SCPI command support
• Internal temperature-compensated frequency reference source
• External 10MHz MCX reference input port
• Front user frequency step buttons
• Front-mounted bright OLED display
• Sturdy all-aluminum enclosure
• Simple Windows control GUI
• Powered from standard USB Type-C (similar to a smartphone)
• Internal usb power supply noise filtering
• Easy to interface with all software packages (Matlab, python, android, linux, ios…)

The TG6000 is a generic RF Tracking Generator that can be used with many existing Spectrum Analyzers. It covers a range from DC to 6GHz and also functions as a standalone RF signal generator from 25 to 6000MHz. The TG6000 can replace the Agilent HP 85640A external tracking generator and adds a Signal Generator function as well. In addition it covers the 2nd band, which the 85640A does not, providing a TG signal past 6GHz. A very good troubleshooting and measuring tool to easily characterize filters and attenuators!

TG12000 Band 1 Tracking Signal Response:

TG12000 Band 2 Tracking Signal Response:

Band 3 Tracking Signal to 12GHz (HP8566B):

Currently Supported Spectrum Analyzers for TG12000:

• HP 8566A/B
• HP 8568A/B
• HP 8569A/B
• HP 8560 all versions
• HP 8561 all versions
• HP 8562 all versions
• HP 8563 all versions
• HP 8564 all versions
• HP 8590
• HP 8591
• HP 8592
• HP 8593
• HP 8594
• HP 8595
• HP 8596
• Advantest R3463
• Advantest R3465
• HP E4407B
• Advantest TR4133B
• Anritsu MS2683
• Anritsu MS710E
• HP70000

Technical Details
