Features:
- RF Output SMA connectors
- Rear SMA 10MHz Reference Frequency input
- Fully USB-powered
- Sturdy all-aluminium enclosure
- Industry Standard SCPI Command support
- Status and power LEDs

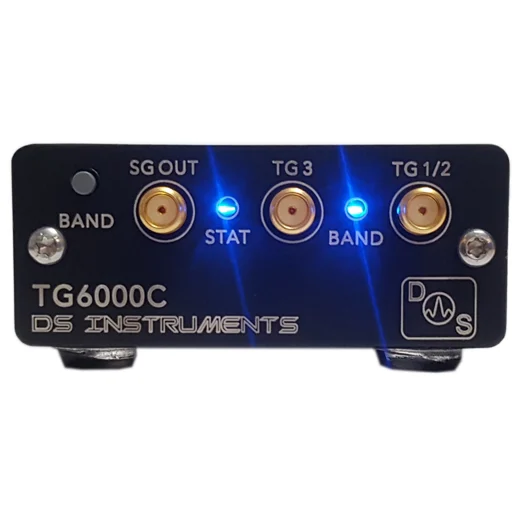

The TG6000 is a generic RF Tracking Generator that can be used with many existing Spectrum Analyzers. It covers a range from DC to 6GHz and also functions as a standalone RF signal generator from 25 to 6000MHz. The TG6000 can replace the Agilent HP 85640A external tracking generator and adds a Signal Generator function as well. In addition it covers the 2nd band, which the 85640A does not, providing a TG signal past 6GHz. A very good troubleshooting and measuring tool to easily characterize filters and attenuators!
Supported Spectrum Analyzers:
- HP 8566A/B
- HP 8568A/B
- HP 8569A/B
- HP 8560 all versions
- HP 8561 all versions
- HP 8562 all versions
- HP 8563 all versions
- HP 8564 all versions
- HP 8590
- HP 8591
- HP 8592
- HP 8593
- HP 8594
- HP 8595
- HP 8596
- HP E4407B
- Advantest R3463
- Advantest R3465
- Advantest TR4133B
- Anritsu MS2683
- Anritsu MS710E
- HP70000 Series
Tracking Signal Performance:
Mechanical Information:
Technical Details
| DC to 6.0 GHz Coverage | Yes |
| Internal signal generator | 25-6000 MHz |
| Typical TG output power | -5 dBm to +0dBm |
| Signal Generator power | >= +10dBm |
| Very Compact Dimensions | 2.75″ x 4.10″ x 1.15″ |
