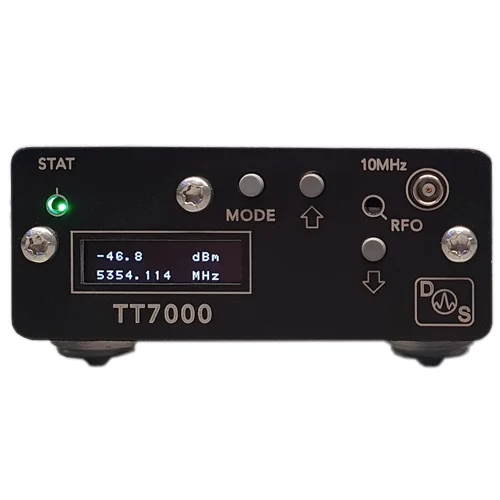

DS Instruments TT7000 Rf Power Meter Frequency Counter

Features:

• Crisp OLED Front Display
• Front control buttons & status LEDs
• USB powered and virtual COM port SCPI control
• All-Aluminum black compact enclosure
• Internal precision reference frequency
• Automatic power meter calibration using internal RF frequency counter
• Adjustable power output (Band 1 <4.8GHz)
• Premium 18GHz microwave SMA jacks
• Low signal generator phase noise
• USB voltage monitor

The DS Instruments TT7000 combines a calibrated RMS RF Power Meter, a wide-band frequency counter, and a RF Signal Generator into one miniature USB device. Incredibly useful in production verification environments and other automated test setups, the TT7000 brings great value to any project. Fractional-N synthesis signal generation covers 300MHz to 9600MHz with low phase noise and adjustable output power. RF Power Meter functionality covers from -45 to +5 dBm for frequencies between 100MHz to 7GHz.

Now Shipping Rev 6 with output step attenuator + vernier control, and simultaneous generator-meter mode.

System Operation Modes:

• RF Power Meter and Frequency Counter (simultaneous)
• Signal Generator & Power Meter (simultaneous)
• Power Meter (manual frequency calibration)
• Frequency Counter
• RF Signal Generator
• High-power RF Divider (1X, 2X, 4X, 8X)
