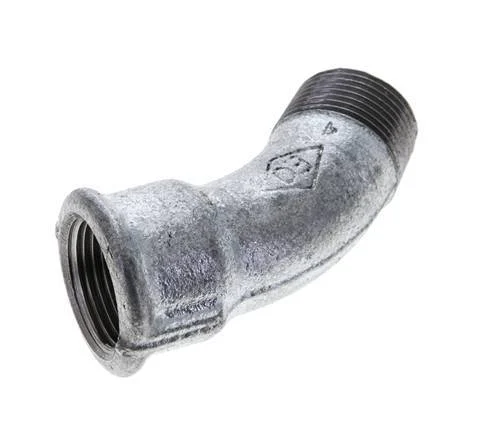

Elbow Fitting 45deg R3/4” Male x Rp3/4” Female Cast Iron 25bar (351.25psi) [2 Pieces]

This is a 45-degree elbow fitting with female (Rp) and male (R) threads. It is used in low-pressure applications up to 25 bar (351.25 psi). It is made of malleable cast iron and has a zinc coating for corrosion protection.

Specifications

Thread : 3/4 inch
Connection type : Inner thread cylindrical BSPT-Rp,Outer thread conical BSPT-R
Material : Malleable cast iron
Max pressure at 20 °C (bar) : 25
Bend angle (°) : 45
Material connection 1 : Malleable cast iron
Material connection 2 : Malleable cast iron
Shape : Elbow
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
With drain : No
