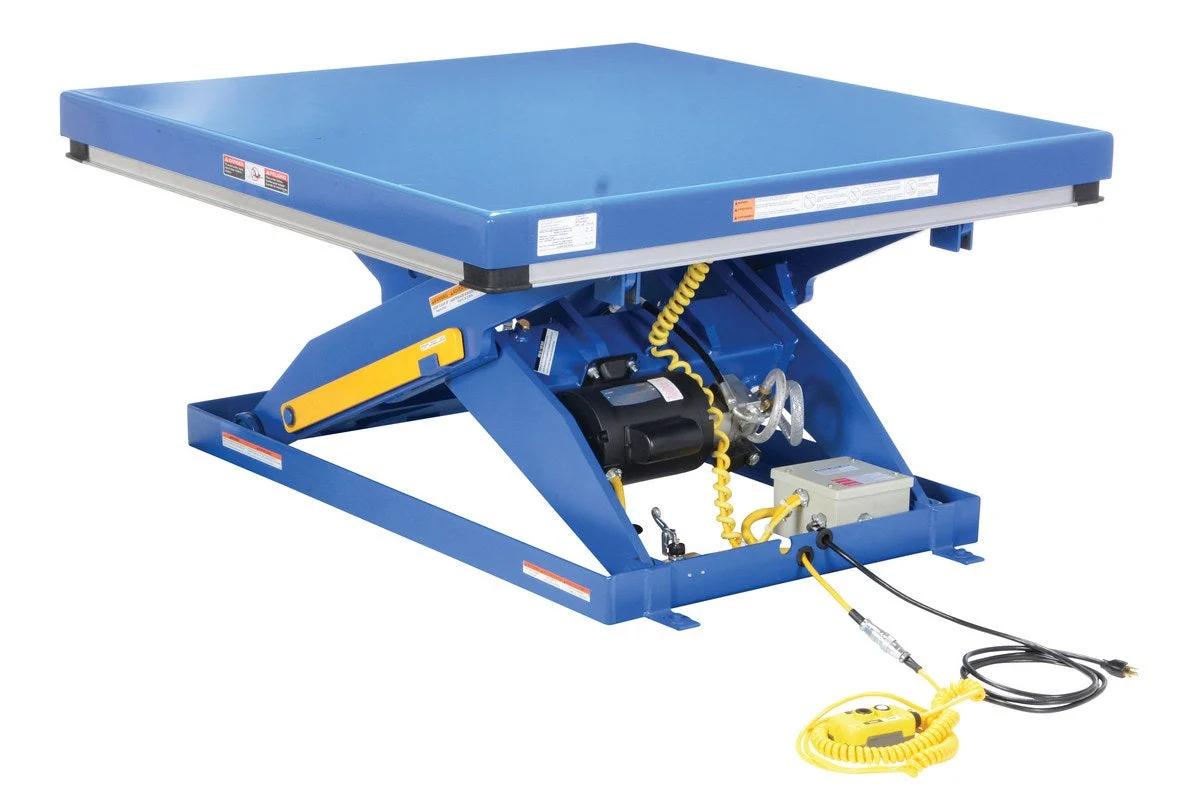

Full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities
Safety features include: electric toe guard to protect pinch points during lowering of the table, internal safety velocity fuse to maintain platform height in event of hose or fitting failure, 24V AC push button hand control, maintenance prop, and upper travel limit switch to stop table at maximum height. 2HP, 460V, 3 phase, 60 Hz totally enclosed motor standard, other voltages available. 3000 psi hydraulic component rating.
ELECTRIC HYDRAULIC PSS LIFT TABLE 1K 24X48
- Partially stainless steel construction for durability
- Large platform to handle large awkward sized material
- AC powered for constant power supply functionality
- Remote control capability to create distance between personnel and table
- Uniform Capacity (lb.):1,000
- Travel Time (sec.):7
- Vertical Travel(in.):36
- Voltage/Phase:460/3
- Hertz:60
- Motor Horsepower:2
- Hydraulic Component Rating (psi):3000
- Cord Length (in.):96
- Push Button Hand Control:24V AC
- Raised Height (in.):43
- Lowered Height (in.):7
- Platform Width/Length (in.):24-3/8 x 48-3/8
Dimensions – 24.375 W x 51 L x 7 H
Color – Silver (Frame, Deck), White (Leg Set)
