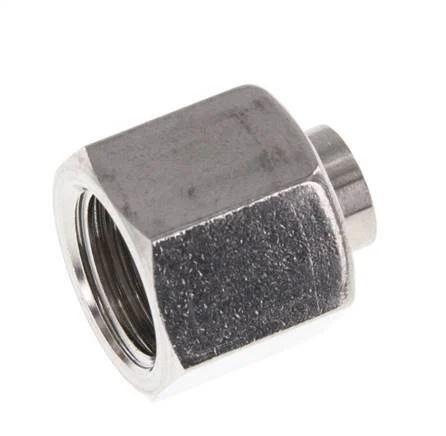

This is an end cap with an external hexagon and it is used for hydraulic applications. Stainless steel 316 (1.4571) fittings have excellent corrosion resistance (better than stainless steel 304). The end cap has a 60° cone seat design.
Specifications
Thread : 1/4 inch
Connection type : Inner thread cylindrical BSPP-G
Fitting features : Hydraulic
Material : Stainless steel
Max pressure at 20 °C (bar) : 575
Type of sealing : 60° cone
Material connection 1 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
With drain : No
