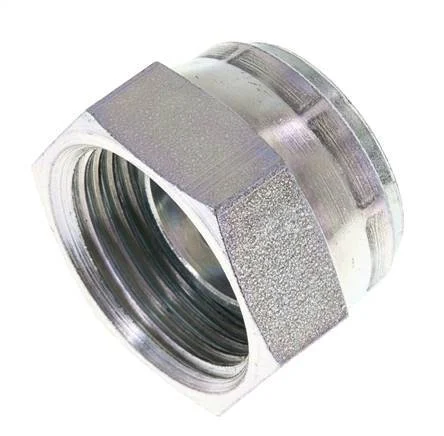

This is an end cap with an external hexagon and it is used for hydraulic applications. Zinc-coated steel fittings provide some corrosion resistance, but are not meant for corrosive environments. The end cap has a 60° cone seat design.
Specifications
Thread : 1 inch
Connection type : Inner thread cylindrical BSPP-G
Fitting features : Hydraulic
Material : Steel
Max pressure at 20 °C (bar) : 150
Type of sealing : 60° cone
Material connection 1 : Steel
Surface protection connection 1 : Galvanic zink plated
With drain : No
