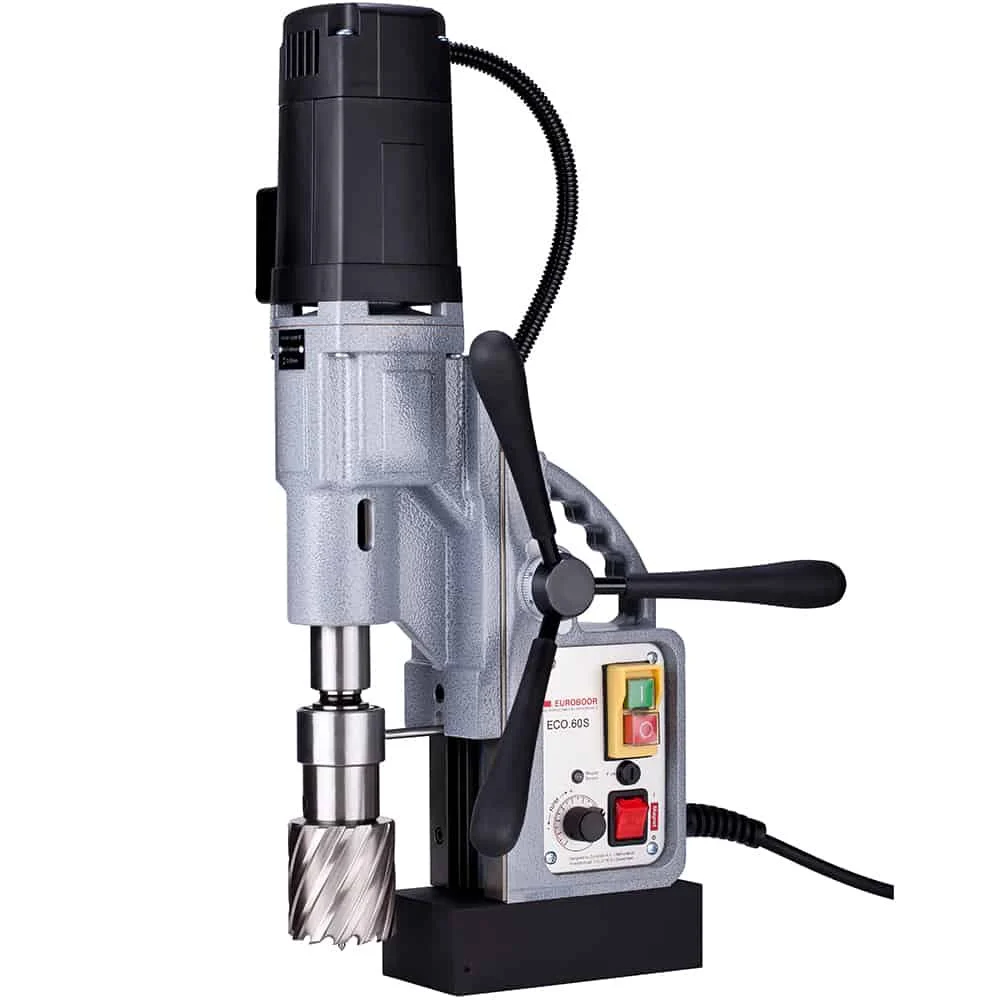

The Euroboor ECO.60S magnetic core drilling machine has a powerful 1600 W (14.5 A) motor, with overload protection, which allows the portable industrial core drilling machine to drill holes up to ø 60 mm (2 3/8″) with ease. The optimized slide makes drilling with the ECO.60S easy and more precise. And the electric speed adjustment lets you control the speed of this magnetic drill with the highest accuracy.
| Annular cutting | Ø 7/16″ – 2 3/8″ |
| Twist drilling | Ø 1/16″ – 15/16″ |
| Countersinking | Ø 3/8″ – 2 9/16″ |
| Length | 12 5/8″ |
| Width | 7 7/8″ |
| Height | 17 3/16″ – 24 1/2″ |
| Stroke | 6 11/16″ |
| Weight | 28.4 lbs |
| Magnet (l x w x h) | 6 5/8″ x 3 5/16″ x 1 15/16″ |
| Magnetic force | 4080 lbs |
| Motor power | 14.5 A |
| Total power | 15.5 A |
| Speed (no load) | (I) 60 – 275 rpm (II) 100 – 500 rpm |
| Speed (load 14.5 A) | (I) 60 – 275 rpm (II) 100 – 500 rpm |
| Spindle (Weldon) | MT 3 3/4″ |
| Voltage | 110 – 120 V / 60 Hz |
