Key Features
32 mm Hole LayoutBuilt for the Festool LR 32 hole drilling system, this rail helps you lay out and machine clean, repeatable rows of holes for shelf pins and hardware without fighting a tape measure on every panel. Guide Rail VersatilityThe Festool guide rail works with Festool routers, plunge saws, and jigsaws with the right adapter, so one rail can handle cabinet drilling, guided cutting, and layout work across the shop. Cleaner, Smoother WorkThe integrated splinter guard supports cleaner cut edges, while the guide strip and non-skid strips help the tool track smoothly and stay put during setup and use.
Overview

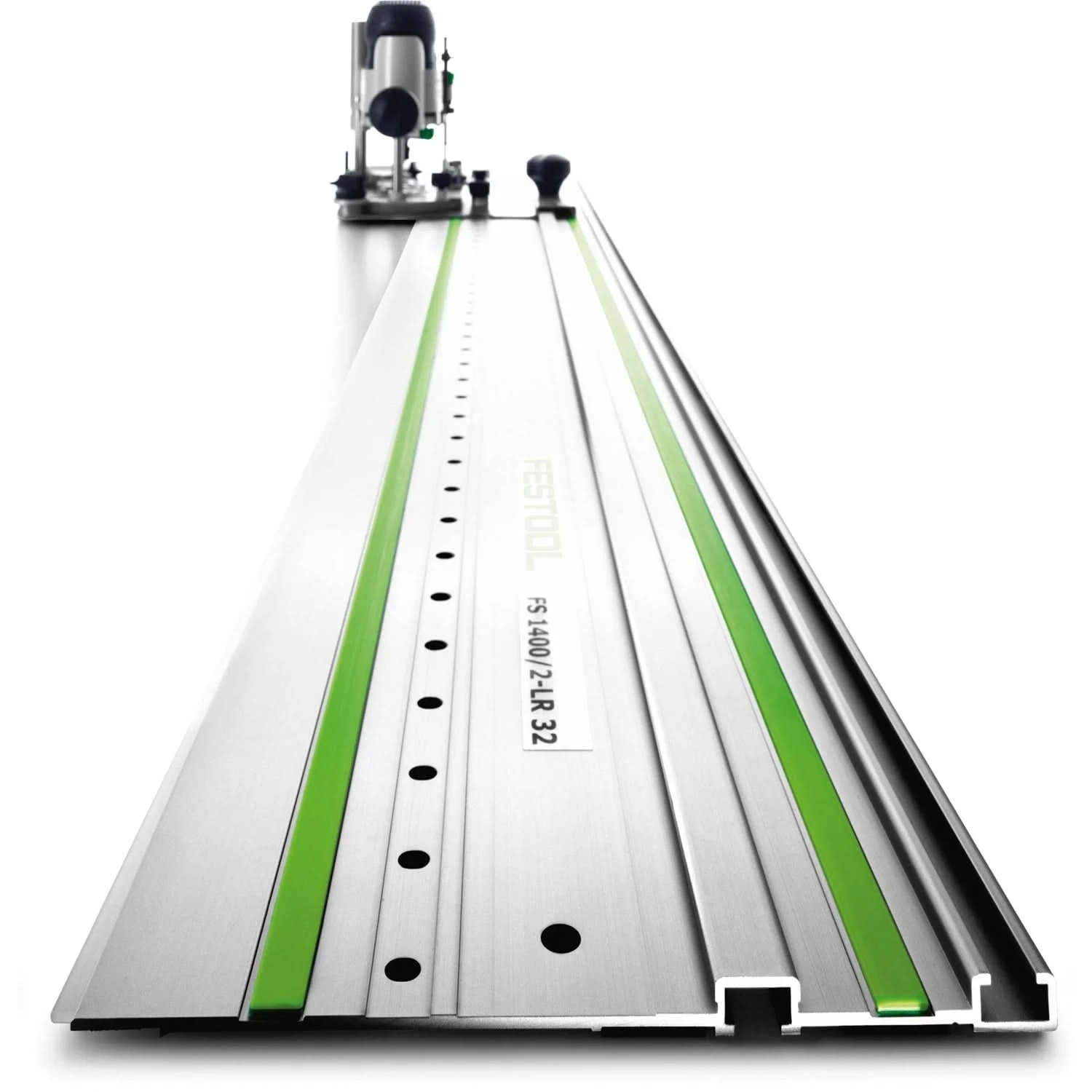

The Festool 32 mm Hole Drilling Guide Rail FS1400/2-LR 32 is a 55 in. guide rail made for cabinet layout, guided routing, and precision cutting. This is a guide rail designed for producing hole lines and guiding compatible cutting or routing tools. Model Number: 496939. If you build frameless European-style cabinets, drill shelf pin rows, or want one straightedge system that also supports guided saw and jigsaw work, this is the rail in the lineup built for that job.
What separates this rail from a standard straight guide is the LR 32 hole pattern. When paired with the Festool LR 32 hole drilling system, it gives you a repeatable way to align and machine shelf pin holes and 35 mm cup hinge locations. That matters because cabinet work is all about consistency. If one panel is off, the whole run looks sloppy. This rail is built to keep spacing and alignment under control so you can move faster without giving up fit and finish.
The 55 in. length, or 1400 mm, is a practical size for cabinet parts and panel work. Festool notes that when used with a Festool plunge saw, the rail can cut material up to 49 in. long. That makes it useful beyond line boring. On a small shop build or on-site install, it can pull double duty for guided crosscuts and rip cuts, which is exactly why a lot of woodworkers and installers keep a rail like this in regular rotation instead of treating it as a one-job accessory.
For cutting applications, the integrated splinter guard does real work. It helps line the rail up to the cut line and reduces tear-out when cutting with or across the grain. In plain terms, setup is quicker and finished edges come out cleaner. The guide strip is there to reduce friction between the tool and rail, which makes movement smoother and more controlled, especially when you are trying to keep a router or saw tracking cleanly through a full pass.
Jobsite practicality is also baked in. The non-skid strips underneath help prevent the rail from sliding during setup and use, so you’re not chasing the guide around the workpiece while trying to hold accuracy. For cabinet parts, sheet goods, and finished panels, that kind of stability saves time and reduces the chance of rework. If you need longer capacity, Festool guide rails can be connected with guide rail connectors for a rigid, continuous run.
Compatibility is one of the biggest reasons to buy into this rail. Festool lists it as suitable for portable circular saws, routers with adapter, and jigsaws with adapter. It is specifically intended to be used with the Festool LR 32 hole drilling system, but it also fits into the wider Festool guide rail workflow. That means one rail can support cabinet hardware layout, line boring, plunge saw cutting, and other guided tasks instead of forcing you to own a separate setup for every operation.
Who should buy it? Cabinetmakers, finish carpenters, closet installers, millwork shops, and serious DIY users building Euro-style casework will get the most out of it. If your work depends on straight cuts and repeatable 32 mm hole spacing, this rail makes sense. If you only need a generic straightedge once in a while, it is probably more system-specific than you need. But if you already run Festool routers or plunge saws and want cleaner, faster cabinet production, this is the right rail for the job.
Built for Fast Cabinet Hole Layout
This rail is made to take the guesswork out of repetitive cabinet drilling. Pair it with the LR 32 system and you get a clean, controlled way to line up shelf pin rows and hardware holes on panel stock.
- Designed specifically for use with the Festool LR 32 hole drilling system
- Supports line boring and hole alignment for shelf pins and 35 mm cup hinges
Cleaner Guided Cuts With Less Fuss
When you’re using the rail for cutting applications, the splinter guard helps you line up faster and protect edge quality. That means cleaner cuts on finished panels and less time fixing tear-out after the fact.
- Integrated splinter guard aligns to the cut line
- Helps reduce tear-out when cutting with or across the grain
One Rail, More Than One Job
This is not a one-trick accessory. If you already use Festool guided tools, the same rail can support routing, plunge saw work, and jigsaw applications with the proper adapter, which makes your setup more useful and your money go further.
- Suitable for portable circular saws, routers with adapter, and jigsaws with adapter
- Can be connected with Festool guide rail connectors for longer cuts
Smooth Tracking and Stable Setup
Good rails are supposed to disappear while you work. The guide strip reduces drag and the non-skid strips help keep the rail planted, so the tool moves more fluidly and setup feels more controlled.
- Guide strip reduces friction between the tool and guide rail
- Non-skid strips help prevent sliding during setup and use
Key Specifications
| Tool Type | 32 mm hole drilling guide rail |
|---|---|
| Length | 55 in. (1400 mm) |
| Weight | 5.7 lbs |
| Material | Metal |
| Hole System | 32 mm cabinet drilling layout |
| Cut Capacity with Festool Plunge Saw | Up to 49 in. |
| Special Feature | Integrated splinter guard |
| Product Condition | New |
Compatibility
Hole Drilling SystemDesigned specifically for use with the Festool LR 32 hole drilling system. RoutersWorks with Festool routers when used with the appropriate adapter. Saws and JigsawsSuitable for portable circular saws and jigsaws with adapter. Extended Rail SetupsCan be joined with Festool guide rail connectors for longer continuous cuts.
Built For
Cabinet Installation Cabinetmaking Woodworking Finish Carpentry Closet Systems Shelf Pin Layout European Frameless Cabinets General Contracting
Pro Tip
If you’re building long cabinet runs, connect guide rails before laying out your first panel so your 32 mm hole sequence stays consistent from piece to piece. That saves you from resetting references halfway through the job.
Warranty & Support
Festool lists this guide rail with a 3-year limited warranty.
Tool Nut’s Take
Tool Nut’s Take
Festool 32 mm Hole Drilling Guide Rail FS1400/2-LR 32 Is the Cabinet Rail, Not Just Another Straightedge
If you’re working in the Festool system and building Euro-style cabinets, this rail earns its keep fast because it handles both hole layout accuracy and guided cutting duties.
- Who it’s for: Cabinet shops, finish carpenters, installers, and woodworkers who need repeatable 32 mm hole spacing and guided panel work.
- Why it stands out: The LR 32-specific layout, integrated splinter guard, and cross-tool compatibility make it a lot more useful than a generic guide rail.
- Worth knowing: This is best for users already invested in Festool routers, plunge saws, or the LR 32 system. If you are not using that platform, you may not take full advantage of what makes it special.
Common Questions
- What is this rail primarily designed for? It is primarily designed for use with the Festool LR 32 hole drilling system to produce 32 mm hole lines for cabinet construction, shelf pins, and hardware alignment.
- How long is the rail? The rail measures 55 in., which is 1400 mm.
- Can it be used for cutting as well as drilling layout? Yes. Festool states it can be used for cutting applications and includes an integrated splinter guard to align to the cut line and help reduce tear-out.
- What tools is it suitable for? Festool lists it as suitable for portable circular saws, routers with adapter, and jigsaws with adapter.
- Can this rail be extended for longer workpieces? Yes. Festool guide rail connectors can be used to join rails for a rigid, continuous connection.
