Key Features
Repeatable Angle CutsThe connectible cross-cutting rail system is built for fast, guided cross cuts with repeat accuracy. If you are knocking out the same angle over and over, the stop system and locking positions help you get there quicker with less setup fuss. Wide Miter RangeWith an angular range from -45 degrees to +60 degrees, this guide rail gives you the flexibility to handle common trim and framing angles without switching to a different setup. Automatic ReturnThe integrated rubber spring brings the saw back to the start position after the cut. That speeds up repetitive work and keeps the Festool 769941 FSK 250 Cross Cutting Guide Rail feeling controlled instead of awkward between cuts.
Overview

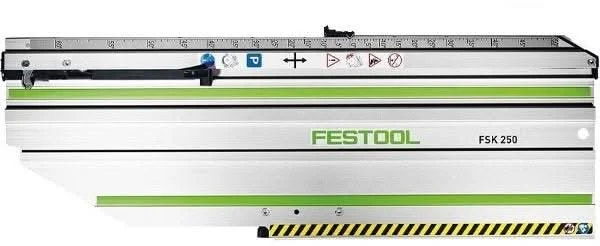

The Festool 769941 FSK 250 Cross Cutting Guide Rail is a guide rail accessory made for quick, accurate cross cuts with compatible Festool saws. This is a cross-cutting guide rail designed for repeatable angled cross cuts on workpieces where speed and consistency matter. Model Number: 769941. If you already run an HKC 55, HK 55, TS 60 K, or TSV 60 K, this accessory turns that saw into a more controlled cross-cutting setup for shop work, trim work, and jobsite cuts.
The big story here is repeatability. Festool built this rail with an adjustable stop, preset locking positions for common angles, and a connectible design that lets the saw and rail work as one unit. That matters when you are making the same cut again and again and do not want to fight layout drift, freehand error, or a clumsy straightedge setup. The 9-7/8 inch cutting length is sized for shorter cross cuts, and the -45 to +60 degree angular range gives you useful flexibility for miter work.
The integrated rubber spring is one of those features that sounds small until you use it. After the cut, the saw returns to the starting position automatically. On repetitive cuts, that keeps the process moving and makes the setup feel more like a purpose-built cross-cut station than a basic rail. Festool also calls out slideway lining for easier movement and a quick fastener system that connects the saw to the rail cleanly, which helps the whole assembly stay predictable through the cut.
Workpiece protection is also part of the design. The splinter guard helps support cleaner cut edges, while the adhesive cushion strip helps protect the material surface during setup and cutting. Add the included screw clamp, which attaches into the rail groove, and you get a more secure hold on the workpiece without improvising with separate clamps that may get in the way.
For real-world use, this accessory makes the most sense for finish carpenters, remodelers, installers, and woodworkers who want guided cross cuts without dragging out a larger stationary saw. It is especially useful when the material is already in place, the cut list is repetitive, or space is tight and portability matters. At about 2.16 to 2.2 pounds, it is light enough to carry with the saw instead of treating it like a shop-only accessory.
Compatibility is important with this product. Official Festool fitment lists the FSK 250 for the HKC 55, HK 55, TS 60 K, and TSV 60 K. If you are shopping for a rail to use with a plunge saw outside that fitment, this is not the place to guess. The value of this system comes from the matched saw-and-rail setup, so buy it when you want that exact Festool cross-cutting workflow rather than a generic guide rail.
If your work is mostly short, accurate cross cuts and angled cuts with a portable saw, this rail earns its keep. If you need long rip cuts, this is not the accessory you buy first. The Festool 769941 FSK 250 Cross Cutting Guide Rail is for users who want fast setup, dependable angle control, and cleaner, more repeatable cross cuts from a compatible Festool platform.
At a Glance
250 mmCutting Length-45° to +60°Angular Range2.16 lbsWeight
Fast Setup for Accurate Cross Cuts
This setup is built to take the guesswork out of angled cross cuts. Instead of balancing a saw against a loose straightedge, you get a guided system meant to track cleanly and repeat the same cut with less trial and error.
- Connectible rail system for guided cross cuts with repeat accuracy
- Adjustable stop system helps dial in repeated angled cuts
- 9-7/8 inch cutting length is sized for short, controlled cross-cut work
Lock In Common Angles Quickly
The angle scale and locking positions are there to save time, not just add numbers to the rail. When you move between standard cut angles during trim or install work, quick indexing helps you stay productive.
- Angular range runs from -45 degrees to +60 degrees
- Locking positions make key angle settings faster to hit
- Secure fixing is supported by a clamp that attaches in the rail groove
Built to Move Smoothly and Protect the Work
Festool added the little details that matter when the rail is in regular rotation. Smooth travel, cleaner cut support, and surface protection all add up to a setup that feels more refined than a generic cutting guide.
- Integrated rubber spring returns the saw to the starting position after the cut
- Splinter guard helps support cleaner cut edges
- Adhesive cushion strip helps protect the workpiece surface
What’s in the Box
- Festool FSK 250 Cross Cutting Guide Rail
- (1) 4-11/16 in. Screw Clamp
Key Specifications
| Cutting Length | 9-7/8 in. (250 mm) |
|---|---|
| Angular Range | -45° to +60° |
| Weight (lbs) | 2.16 lbs (1 kg) |
| Tool Type | Cross-Cutting Guide Rail |
| Clamp Included | Yes, 4-11/16 in. Screw Clamp |
| Primary Use | Guided cross cuts and angle cuts |
Compatibility
Compatible Saws Official Festool fitment lists the FSK 250 for Festool HKC 55, HK 55, TS 60 K, and TSV 60 K saws. Rail Connection The saw connects to the rail as a single unit by means of a quick fastener for guided cross-cutting work. Work Holding The included screw clamp attaches in the groove of the cross-cutting guide rail for secure fixing to the workpiece.
Built For
Finish CarpentryRemodelingWoodworkingInterior TrimRepeat Cross CutsMiter Cutting
Pro Tip
If you are batch-cutting the same part, set the stop once and use the rail’s locking angle positions instead of remeasuring every piece. Pair that with the included clamp in the rail groove and the setup stays faster and more consistent from the first cut to the last.
Warranty & Support
No manufacturer’s warranty is listed in the provided product data.
Tool Nut’s Take
Tool Nut’s Take
Festool 769941 FSK 250 Cross Cutting Guide Rail for clean, repeatable cut work
This is the kind of accessory that makes a compatible saw feel a lot more like a dedicated cross-cut system.
- Who it’s for: Pros and serious DIY users running compatible Festool saws who want faster, more accurate cross cuts and miter cuts without hauling a bigger stationary setup.
- Why it stands out: The stop system, automatic return, locking angles, and included clamp all solve real workflow problems, not just brochure problems.
- Worth knowing: This rail is about short, precise cross-cutting work. Buy it for that job, and it makes a lot of sense. Buy it expecting a general-purpose long rail, and you are shopping the wrong accessory.
Common Questions
- What is the cutting length of this guide rail? The listed cutting length is 9-7/8 in. (250 mm).
- What angle range does it support? The rail supports angle settings from -45 degrees to +60 degrees.
- Which saws is it designed to fit? Official Festool fitment lists HKC 55, HK 55, TS 60 K, and TSV 60 K.
- Does it help with repeated cuts? Yes. It includes an adjustable stop, locking positions for important angles, and an integrated return function that brings the saw back to the start position after sawing.
