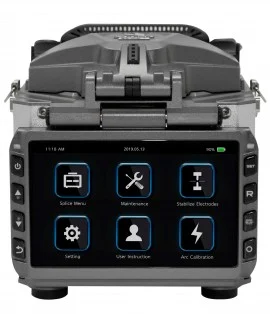

The Mini6S+ is a high-precision, core alignment fusion splicer designed for fast, efficient, and low-loss fiber splicing. It is also compact, durable, and user-friendly, making it an excellent choice for telecom, FTTx, and data center applications.
FiberFox Mini6S+ Offers
Core-to-core alignment ensures superior accuracy, reducing splice loss significantly. Auto fiber detection, alignment, and splicing reduce manual errors and provide real-time monitoring with error detection to improve the overall splicing success rate.
Features
- Core alignment fusion splicer with 6 motors
- Splice Time: 6 seconds with single mode fiber (quick mode) significantly improves efficiency
- Heating time: 10 seconds quick sleeve heating saves time (6 seconds with continuous heating mode)
- Compatible with all SOC (splice on connectors)
- Works with SingleMode (SM), MultiMode (MM), DispersionShifted (DS), and NZDS fibers
- Compatible with 250 µm, 900 µm, 3 mm jacketed fibers, and drop cables
- 4.3″ (10.92 cm) color LCD touchscreen with intuitive user interface
- Dustproof, waterresistant, and shockresistant with IP52 Ingress Protection Rating
Applications
- Telecom and ISP providers looking for a professional, highprecision fusion splicer
- Fiber optic technicians and contractors working on FTTx, metro networks, and backbone infrastructure
- Enterprise and data center teams needing a compact and reliable splicer
- Field engineers and maintenance teams requiring a rugged and portable solution
FiberFox Mini6S+ Specifications
| Splicing Method | Core Alignment DWACAS (Digital Wavelength Automatic Core Alignment System) |
| Average Loss | SM (0.02dB)/MM (0.01 dB)/DS (0.04 dB)/NZDS (0.04 dB)/G.657 (0.02 dB) |
| Return Loss | >60 dB |
| Splice Time | 12s average SM/SM 7s Quick mode |
| Electrodve Lifespan | >3500 arcs |
| Applicable Fiber | SM (ITU-T G.652, MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655), IT-G657A, IT-G657B, 0.25 mm, 0.9 mm, 2.0 mm, 2.4 mm, 3.0 mm, FLAT (indoor cable) |
| Cleaved Length | Coating Diameter <0.25 mm = 8-16 mm Coating Diameter> 0.25 mm = 16 mm minimum |
| Coating Diameter | 10 to 1000 um |
| Cladding Diameter | 8 to 150 um |
| Heating Programs | Factory installed mode: 37, User installable mode: 110 |
| Heating Time | 16 seconds |
| Protection Sleeve | 40 mm, 60 mm, SOC Connector |
| Data Output | Micro HDMI-USB master device |
| Splice Programs | Factory installed mode: 33 User installable mode: 70+ |
| Splice Memory | Up to 2000 records and 2000 splice images |
| Battery Typical | 200 Cycles (Splice and Heat)/single battery (2 batteries standard) |
| Power Supply | AC 10 to 240 V input or DC 9 to 14 V |
| Monitor | Color 4.3″ (10.92 cm) LCD monitor, with touch screen |
| Cameras | 2 CCD camera system |
| Magnification | XY style: 150 power X/Y: 300 power |
| Fiber Display | X/Y or XY single X.Y |
| Operating Environment | -15 to 60˚C, 0 to 95% relative humidity |
| Pull Test | 1.96 to 2.25N (standard) |
| Dimensions | 4.8 x 4.88 x 5.4″ (12.19 x 12.40 x 13.72 cm) |
| Weight | 3.09 lbs (1.4 kg) without battery |
