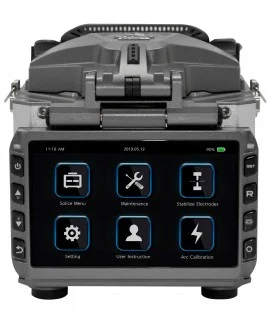

The Mini6S-FT3X Kit is a top-tier fusion splicing package that combines high-precision core alignment technology with long-term calibration support. The FastTrack Calibration Service provides ongoing support for your equipment ensuring it stays accurate and reliable, while maximizing its lifespan, thereby reducing downtime and maintenance costs.
FiberFox Mini6SFT3X Offers
The Mini6S+ is a high-precision, core alignment fusion splicer designed for fast, efficient, and low-loss fiber splicing. The FastTrack Calibration Service ensures that your splicer remains in optimal condition and maintains accuracy and precision over time. Prevents unexpected downtime by identifying and fixing potential issues early. Ensures compliance with industry standards for reliable fiber splicing. Saves money on emergency repairs by providing scheduled maintenance.
Features
- Core alignment fusion splicer with 6 motors
- Splice Time: 6 seconds with single mode fiber (quick mode) significantly improves efficiency
- Heating time: 10 seconds quick sleeve heating saves time (6 seconds with continuous heating mode)
- Compatible with all SOC (splice on connectors)
- Works with SingleMode (SM), MultiMode (MM), DispersionShifted (DS), and NZDS fibers
- Compatible with 250 µm, 900 µm, 3 mm jacketed fibers, and drop cables
- 4.3″ (10.9 cm) color LCD touchscreen with intuitive user interface
- Dustproof, water resistant, and shock resistant with IP52 Ingress Protection Rating
Applications
- Telecom and ISP providers looking for a professional, highprecision fusion splicer
- Fiber optic technicians and contractors working on FTTx, metro networks, and backbone infrastructure
- Enterprise and data center teams needing a compact and reliable splicer
- Field engineers and maintenance teams requiring a rugged and portable solution
FiberFox Mini6SFT3X Specifications
| Splicing Method | Core Alignment DWACAS(Digital Wavelength Automatic Core Alignment System) |
| Average Loss | SM (0.02dB)/MM (0.01dB)/DS (0.04dB)/NZDS (0.04dB)/G.657 (0.02dB) |
| Return Loss | >60 dB |
| Splice Time | 12 seconds average SM/SM 7 seconds Quick mode |
| Electrodve Lifespan | >3500 arcs |
| Applicable Fiber | SM(ITU-T G.652, MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), IT-G657A, IT-G657B, 0.25 mm, 0.9 mm, 2.0 mm, 2.4 mm, 3.0 mm, FLAT(indoor cable) |
| Cleaved Length | Coating Diameter <0.25 mm = 8-16 mm Coating Diameter> 0.25 mm = 16 mm minimum |
| Coating Diameter | 10 to 1000 um |
| Cladding Diameter | 8 to 150 um |
| Heating Programs | Factory installed mode: 37 User installable mode: 110 |
| Heating Time | 16 seconds |
| Protection Sleeve | 40 mm, 60 mm, SOC Connector |
| Data Output | Micro HDMI-USB master device |
| Splice Programs | Factory installed mode: 33 User installable mode: 70+ |
| Splice Memory | Up to 2000 records and 2000 splice images |
| Battery Typical | 200 Cycles (Splice and Heat)/single battery (2 batteries standard) |
| Power Supply | AC 10 to 240 V input or DC 9 to 14 V |
| Monitor | Color 4.3″ (10.92 cm) LCD monitor, with touch screen |
| Cameras | 2 CCD camera system |
| Magnification | XY style: 150 power X/Y: 300 power |
| Fiber Display | X/Y or XY, single X.Y |
| Operating Environment | 5 to 140˚F (-15 to 60˚C), 0 to 95% relative humidity |
| Pull Test | 1.96 to 2.25 N (standard) |
| Dimensions | 4.8 x 4.88 x 5.4″ (12.19 x 12.40 x 13.72 cm) |
| Weight | 3.09 lbs (1.4 kg) without battery |
