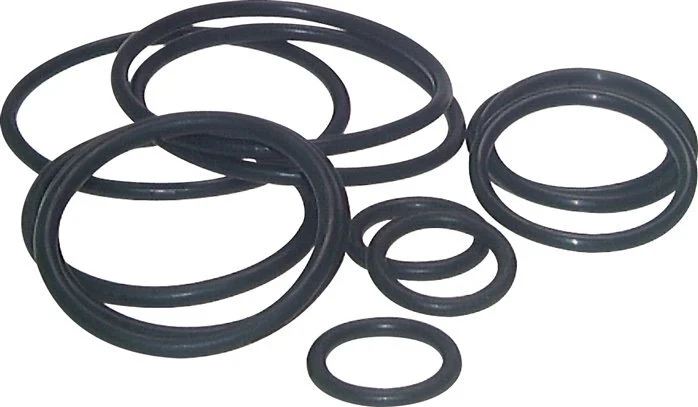

FKM O-ring 22 x 3.5mm (OD 29mm) 80 Shore A [10 Pieces]

This O-ring has a 22 mm internal diameter and a 3.5 mm thick cord.

FKM is a high performance compound and is resistant to many high temperature chemicals. It is suitable for vacuum applications and resistant to oils, grease and fuels.

Pros:

• Good resistance to oils and solvents such as aliphatic, aromatic and halocarbons, acids, animal and vegetable oils
• Suitable for temperatures from -15 to 200°C (5 to 392°F)
• Good mechanical properties, resistant to compression set
• Conforms to DIN 3771, ISO 3601-1, JIS 240 P+G, SMS 1586, BS 1806/AS 568 A, BS 4518

Cons:

• Poor resistance to hot water and steam
• Unsuitable for polar solvents, certain esters and ethers, glycol based brake fluid

Specifications

Internal diameter (mm) : 22
Material : FKM (FPM)
Cord thickness (mm) : 3.5
Recommended for : Air,Carbon dioxide,Dilute acids and bases,Strong acids and bases,Oil,Fuel,Lubricant,Combustible gases
Color : Black
Max temperature (°C) : 200
Min temperature (°C) : -15
