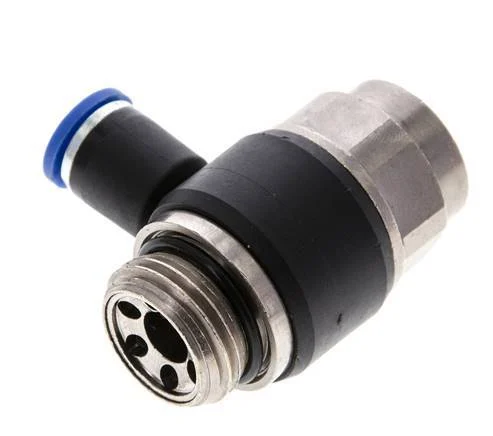

Flow Control Silencer Meter-Out Elbow 8 mm – G1/2” Brass/PA 66 Slotted Screw

This is a nickel-plated brass/PA 66 meter-out elbow pneumatic flow control silencer for one-directional adjustable control of the air flow. It has a 8 mm push-in fitting on one side and a G 1/2 inch male threaded port on the other side. It has NBR seals that make it suitable for applications within a temperature range from -20 to 80 °C (-4 to 176 °F). The operating pressure range is -0.95 to 20 bar (-14 to 290 psi), making it suitable for vacuums. Use the rotatable needle to adjust the orifice size that defines the flow rate in one direction.

Pros:

• It has a push-in connection for easy installation and release for pneumatic hosing
• It can be used for vacuum applications
• The threaded connection is positionable

Specifications

Connection size : 1/2 inch
Connection type : Outer thread cylindrical BSPP-G,Push-in
Push-in connection : 8 mm
Material : Brass/PA 66
Seal material : NBR (nitrile rubber)
Max pressure difference at 20 °C (bar) : 20
Recommended for : Vacuum
Min temperature (°C) : -20
Max temperature (°C) : 80
Needle valve feature : Slotted screw,Meter-Out,Rotatable
Vacuum (bar) : -0.95
Shape : Elbow
Surface protection : Nickel-plated
