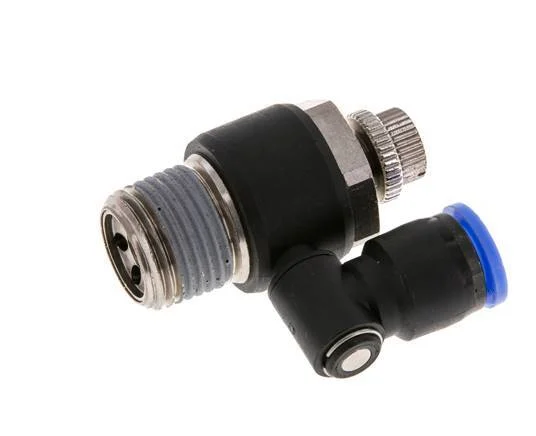

Flow Control Silencer Meter-Out Rotatable 10 mm – R1/2” Brass/PA 66

This is a nickel-plated brass/PA 66 meter-out rotatable pneumatic flow control silencer for one-directional adjustable control of the air flow. It has a 10 mm push-in fitting on one side and a R 1/2 inch male threaded port on the other side. It has NBR seals that make it suitable for applications within a temperature range from 0 to 60 °C (32 to 140 °F). The operating pressure range is -0.95 to 10 bar (-14 to 145 psi), making it suitable for vacuums. Use the rotatable needle to adjust the orifice size that defines the flow rate in one direction.

Pros:

• It has a push-in connection for easy installation and release for pneumatic hosing
• It can be used for vacuum applications
• The threaded connection is positionable

Specifications

Connection size : 1/2 inch
Connection type : Outer thread conical BSPT-R,Push-in
Push-in connection : 10 mm
Material : Brass/PA 66
Seal material : NBR (nitrile rubber)
Max pressure difference at 20 °C (bar) : 10
Recommended for : Vacuum
Max temperature (°C) : 60
Needle valve feature : Meter-Out,Rotatable
Vacuum (bar) : -0.95
Shape : Elbow
Surface protection : Nickel-plated
