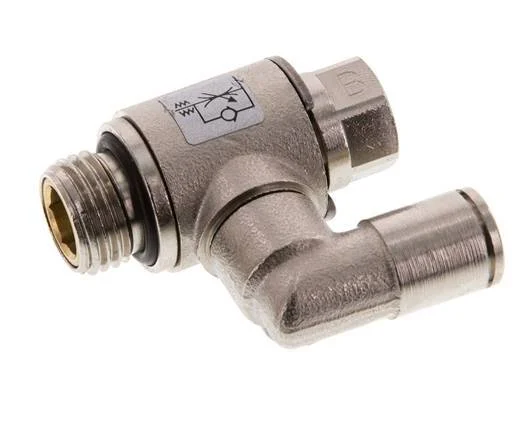

Flow Control Valve Meter-Out Rotatable 6 mm – G1/4” Brass Slotted Screw

This is a nickel-plated brass meter-out rotatable pneumatic flow control valve for one-directional adjustable control of the air flow. It has a 6 mm push-in fitting on one side and a G 1/4 inch male threaded port on the other side. It has NBR/Plastic seals that make it suitable for applications within a temperature range from -20 to 80 °C (-4 to 176 °F). The operating pressure range is 0.2 to 10 bar (3 to 145 psi). Use the rotatable needle to adjust the orifice size that defines the flow rate in one direction.

Pros:

• It has a push-in connection for easy installation and release for pneumatic hosing
• The threaded connection is positionable

Specifications

Connection size : 1/4 inch
Connection type : Outer thread cylindrical BSPP-G,Push-in
Push-in connection : 6 mm
Material : Brass
Seal material : NBR/Plastic
Max pressure difference at 20 °C (bar) : 10
Min temperature (°C) : -20
Max temperature (°C) : 80
Needle valve feature : Slotted screw,Meter-Out,Rotatable
Shape : Elbow
Surface protection : Nickel-plated
