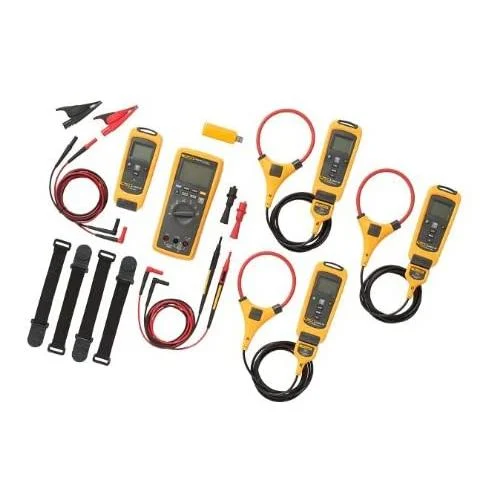

FLK-3000 FC IND Includes Only:
- Fluke 3000 FC Series Wireless Multimeter
- (3) Fluke a3001 FC Wireless iFlex AC Current Module
- Fluke v3000 Voltage Module
- TL224 Test Leads
- TL175 Test Leads
- AC285 Alligator Clips
- AC175 Alligator Clips
- (3) iFlex i2500-10 Flexible Current Probe
- Magnetic hanging strap
De-energize the cabinet, connect the remote modules, close the cabinet and reenergize. The FC Wireless Industrial System displays the readings wirelessly on the 3000 FC Wireless Digital Multimeter. Connect the three FC Wireless iFlex AC Current Module to your test points, and view the results from all three phases in 1/3 the time and cost of current test methods or connect the FC Wireless AC Voltage Module and view both voltage and current measurements simultaneously. You’ll get better answers, faster, and spend less time in full PPE. From short distances, you can even view readings from modules through closed electrical panels. Plus the Fluke Connect® remote modules capture up to 65,000 sets of time-stamped min/max/avg readings, using the optional PC adapter. Fluke Connect wireless test tools also offer increased safety by letting you view readings in a separate location from the test point. Now you can take readings on moving machinery, with only the measurement module in harm’s way.
Features with all optional accessories:
- Measurements up to 1000 V true-RMS AC
- Use as a standalone meter or as part of the system
- A logging function for recording and saving up to 65,000 readings
Technical Details
| Subject to the use of all the optional accessories | ||
| Maximum voltage between any terminal and earth ground | 1000 VDC or AC rms | |
| Ω fuse protection from A inputs | 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only | |
| Display (LCD) | Update rate | 4/sec |
| Volts, amps, ohms | 6000 counts | |
| Frequency | 10,000 counts | |
| Capacitance | 1,000 counts | |
| Battery type | Three AA Alkaline batteries, NEDA 15A IEC LR6 | |
| Battery life | 250 hours minimum | |
| RF communications | 2.4 GHZ ISM Band | |
| RF communication range | Open air, unobstructed | Up to 20 m |
| Obstructed, sheetrock wall | Up to 6.5 m | |
| Obstructed, concrete wall, or steel electrical enclosure | Up to 3.5 m | |
| Temperature | Operating | -10°C to 50°C |
| Storage | -40°C to 60°C | |
| Temperature coefficient | 0.1 x (specified accuracy) / °C (<18°C or> 28°C) | |
| Relative humidity | 0% to 90% (0°C to 35°C) 0% to 75% (35°C to 40°C) 0% to 45% (40°C to 50°C) |
|
| Altitude | Operating | 2,000 m |
| Storage | 12,000 m | |
| Electromagnetic compatibility EMI, RFI, EMC, RF |
EN 61326-1:2006, EN 61326-2-2:2006 ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489 V1.8.1:2008, FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249 FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE |
|
| Safety compliance | ANSI/ISA 61010-1 / (82.02.01): 3rd edition CAN/CSA-C22.2 No 61010-1-12: 3rd edition UL 61010-1: 3rd edition IEC/EN 61010-1:2010 |
|
| Certifications | CSA, FCC, CE | |
| Ingress Protection (IP) rating | IP54 | |
| Pollution Degree | 2 | |
| Size (H x W x L) | 4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14 in) | |
| Weight | 340 g (12 oz) |
