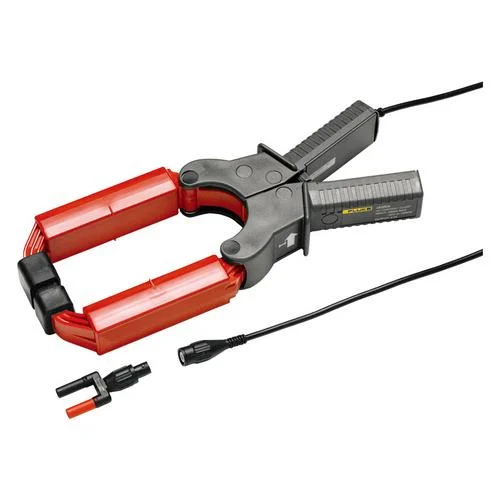

Fluke Current clamps are the ideal tools to extend the current ranges of Fluke tools. The i3000s is a clamp-on AC Current Clamp for use with oscilloscopes and multimeters with banana input using the supplied Dual Banana to BNC Adapter. The clamp is optimized for measurement on power distribution systems.
Technical Details
| Nominal current range | 30 A 300A 3000A |
| Continuous current range | 1 A – 30 A 1 A – 300 A 1 A – 3000 A |
| Maximum non-destructive current | 4000 A |
| Lowest measurable current | 1 A |
| Basic accuracy | 2% + 2 A (48-65 Hz) % reading + floor space |
| Useable frequency | 10 Hz – 100 kHz |
| Output level(s) | 10 mv/A 1 mv/A 0.1 mv/A |
| Safety | CAT III, 600 V |
| Maximum voltage | 600 V AC |
| Maximum conductor diameter | 64 mm |
| Output cable length | 2.1 m |
