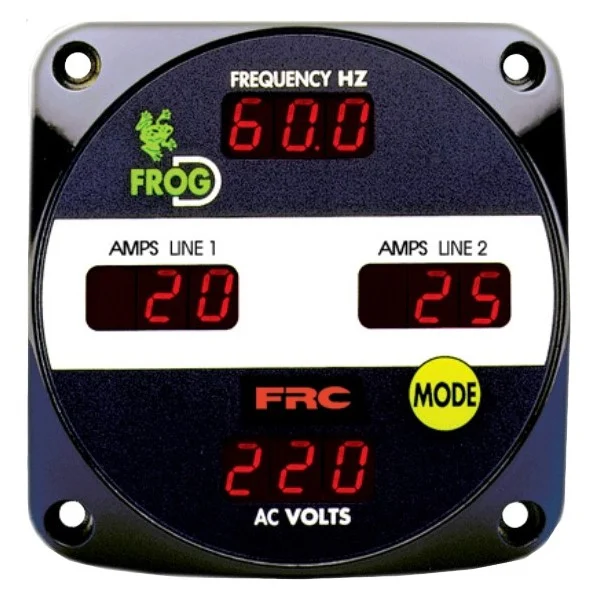

FRC (Fire Research Corp.), FDA100-020, Generator Display, Frog-D, Single Phase, 60hz 20kw
FDA100-020 Includes Only:
- Display module
- Voltage transformer
- (2) Current transformers
- Cables
Fire Research Frog-D model FDA100-020 generator display kit shall be installed to monitor a single phase, 50/60 Hz, 20 kW generator. The display case shall be waterproof and have dimensions not to exceed 4-1/4″ high by 4-1/4″ wide by 3-1/4″ deep.
The Frog-D provides a compact way to comply with NFPA requirements for instrumentation on a line voltage power source.(NFPA 1901, 2003 Edition, 23.4.6.3.)
The Frog-D is more than just a display, it also functions as a Warning System. It constantly monitors inputs and provides a visual warning alarm when a value goes out of normal range.
The Frog-D is a display only version of the FROG governor and is for use with PTO driven generators that have built in governing capabilities.
Technical Details
| Supply Power | 12 VDC |
| Supply Current | 1.25 Amps |
| Dimensions | 4.25″ Wide by 4.25″ High |
| Frequency | 0 – 99.9 Hz |
| Current | 0 – 200 Amps Each Line |
| Voltage | 0 – 400 AC volts |
| Hourmeter | 0 – 99999.9 (0.1 Hour Increments) |
| Hydraulic Oil Temperature | 0 – 230 °F |
