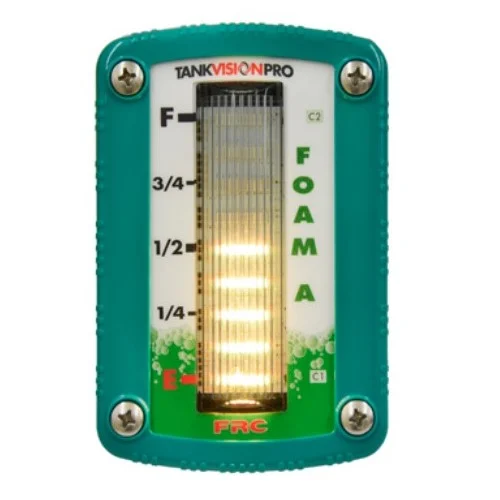

FRC (Fire Research Corp.), WLA360-B00, Foam Display, Tankvisionpro 300, Remote, Class A
Features:
- More accurate tank level display
- Programmable brightness control
- Full 180° wide-view, easy to see display
The TankVision Pro is the fire industry’s first multicolor tank level display. It uses a pressure sensor to sense the amount of liquid in the tank and can be calibrated to accurately display the volume in tanks of all shapes and sizes.
The cab miniature display has dimensions of 2.75 inches high by 1.5 inches wide.
Technical Details
| Display Module | |
| Supply Voltage | 9 – 30 VDC |
| Supply Current | 0.25 Amp Maximum |
| Dimensions | 4-3/8 by 3 Inches |
| Housing | Waterproof Polycarbonate with plastic lens and enclosure to protect electronics |
| Indicators | Tri-Color of Bright LEDs (9/10 Rows) |
| Viewing Angle | 180° |
| Cab Miniature Display | |
| Supply Voltage | 9 – 30 VDC |
| Supply Current | 0.5 Amp Maximum |
| Dimensions | 2-1/4 by 1-1/2 Inches |
| MaxVision LED Tank Display | |
| Supply Voltage | 12/24 VDC |
| Supply Current | 1 Amp Maximum at 12 VDC |
| Dimensions | 14-3/8 by 1-7/8 Inches |
| Indicators | 96 Super Bright LEDs |
| Remote Light Driver | |
| Supply Voltage | 9 – 30 VDC |
| Supply Current | 0.1 Amp Maximum |
| Switch | Solid State |
| Switching Voltage | 9 – 30 VDC |
| Switching Current | 20 AMPS Maximum at 12 VDC / 10 AMPS Maximum at 24 VDC |
| Pressure Sensor | |
| Housing | Stainless Steel with 1/4-18 NPT for Mounting |
| Sensor | Ceramic Diaphragm |
| Pressure Range | 0 – 5 PSI (Maximum Tank Height – 10 Feet) |
| Excitation Voltage | 5 VDC |
| Pressure/Vacuum Foam Tank Vent | |
| Material | PVC and Aluminum with Delrin Valves |
| Relief Pressure | ±0.01 PSI |
| Maximum Flow Rate | Compensates 100% for Concentrate Flow Rates / Below 60 GPM |
