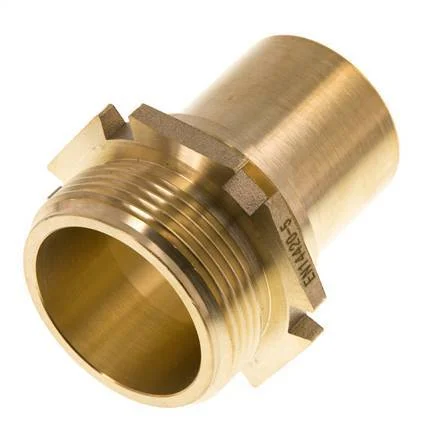

G 1 1/2” Male x 38mm Brass Hose barb with Safety Collar DIN 2817

This hose screw connection is designed with a nozzle and a male thread. Connection 1 has male G 1 1/2 inch threads. Connection 2 is a hose pillar, designed for a hose with an inner diameter of 38 mm. It is a straight fitting. It is made out of brass. It is made in accordance with the EN 14420-5 (DIN 2817).

FL2S-MH series

The FL2S-MH series are hose barbs with male threads. They are made out of brass, stainless steel, steel or plastic. Available with G-, R-, and NPT thread. Suitable for a max pressure up to 40 bar.

Specifications

Thread : 1 1/2 inch
Hose pillar connection : 38 mm
Connection type : Outer thread cylindrical BSPP-G
Material : Brass
Standard : EN 14420-5 (DIN 2817)
Fitting features : With safety collar
Model : 1-part
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
With drain : No
