G 1 1/2” Zinc plated Steel Tee 160 Bar – Hydraulic

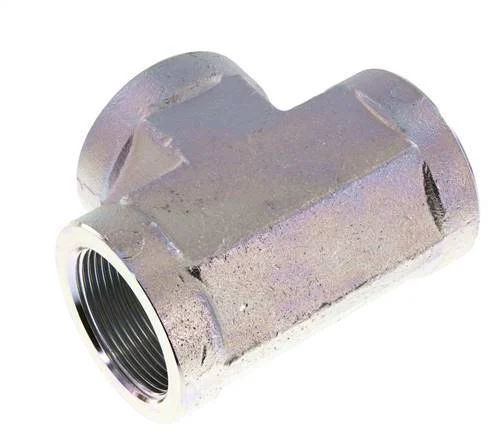

This T-piece is designed with 3 female threaded ports in a T shape. Connection 1 has female G 1 1/2 inch threads. Connection 2 has female G 1 1/2 inch threads. Connection 3 has female G 1 1/2 inch threads. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 160 bar (2321 psi).

FL3T-F series

The FL3T-F series has 3 connection ports of all female NPT, G, Rp, or metric threads. They are in a T shape. Made out of brass, cast iron, steel, or stainless steel they have a pressure range of 10 to 350 bar.

Specifications

Thread : 1 1/2 inch
Thread (smallest) : 1 1/2 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Steel
Fitting features : Hydraulic
Max pressure at 20 °C (bar) : 160
Model : T-piece
Material connection 1 : Steel
Material connection 2 : Steel
Material connection 3 : Steel
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
Surface protection connection 3 : Galvanic/electrolytic zinc plated
