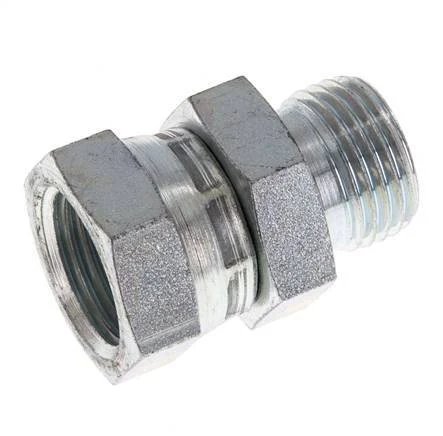

G 1/2” F/M Zinc plated Steel Reducing Adapter 300 Bar – Hydraulic

This adjustable screwed connection is designed with male G threads and female G threads (60 degree conical). Connection 1 has female G 1/2 inch threads. Connection 2 has male G 1/2 inch threads. It is a straight fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 300 bar (4351 psi).

FL2S-FM-I series

The FL2S-FM-I series are straight fittings with G male threads and G female threads with a 60 degree conical seal from 1/8 inch to 2 inches. They are a 2-part design and made out of steel and stainless steel.

Specifications

Thread : 1/2 inch
Thread (smaller) : 1/2 inch
Connection type : Inner thread cylindrical BSPP-G,Outer thread cylindrical BSPP-G
Material : Steel
Max pressure at 20 °C (bar) : 300
Fitting features : Hydraulic,Adjustable
Threaded end seal 2 : Inside cone, 60°
Model : 2-part
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
