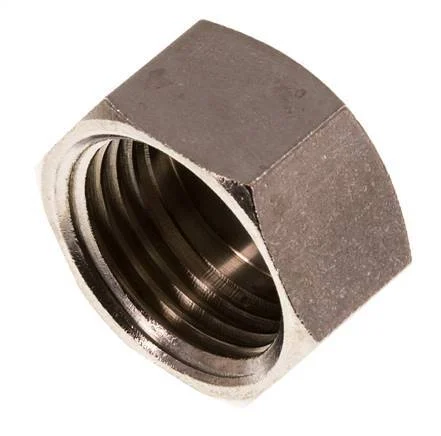

G 1/2” Nickel plated Brass End cap 16 Bar [2 Pieces]

This end cap is designed with a female threaded connection. Connection 1 has female G 1/2 inch threads. It is an end cap, so it has no output port. It is made out of brass and is nickel-plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi).

FL1-F series

The FL1-F series consists of fittings with 1 female threaded connection port, so they are end caps. G, Rp, and NPT threads with a size range of 1/8 inch to 3 inches. Made out of brass, steel, stainless steel, or cast iron. They are designed to stop the media flow.

Specifications

Thread : 1/2 inch
Connection type : Inner thread cylindrical BSPP-G
Fitting features : Capped
Material : Brass
Max pressure at 20 °C (bar) : 16
Material connection 1 : Brass
Surface protection connection 1 : Nickel-plated
With drain : No
