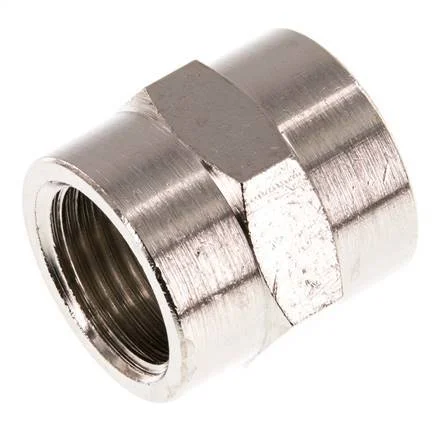

G 1/2” Nickel plated Brass Socket 16 Bar [2 Pieces]

This sleeve (reducing socket) is designed with reducing threads (hexagonal body). Connection 1 has female G 1/2 inch threads. Connection 2 has female G 1/2 inch threads. It is a straight fitting. It is made out of brass and is nickel-plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi).

FL2S-F series

The FL2S-F series are straight sleeves designed either as reduces or weldable for female threads. They are made out of brass, cast iron, steel, sainless steel, or aluminum.

Specifications

Thread : 1/2 inch
Thread (smaller) : 1/2 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Brass
Max pressure at 20 °C (bar) : 16
Model : 1-part
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
