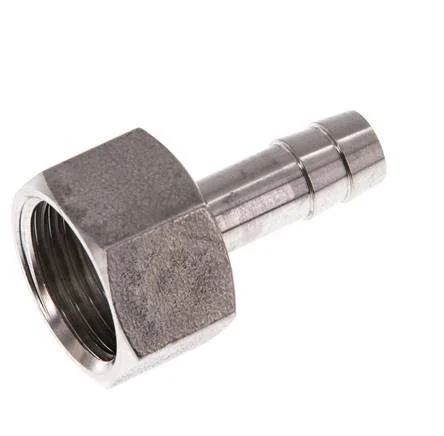

G 1/2” x 9mm Stainless steel Hose barb 40 Bar

This hose screw connection is designed with a hose pillar connection and female G threads. Connection 1 has female G 1/2 inch threads. Connection 2 is a hose pillar, designed for a hose with an inner diameter of 9 mm. It is a straight fitting. It is made out of stainless steel (1.4571). At 20 °C (68 °F), it can handle a maximum pressure of 40 bar (580 psi).

FL2-H series

The FL2-H series are straight fittings with a hose pillar on connection 1 and female threads (G or metric) or a union nut on connection 2. They are made out of brass and stainless steel.

Specifications

Thread : 1/2 inch
Hose pillar connection : 9 mm
Connection type : Inner thread cylindrical BSPP-G
Material : Stainless steel
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 40
Quality of material : Stainless steel 321 (1.4541)
Model : 1-part
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 321 (1.4541)
Material quality connection 2 : Stainless steel 321 (1.4541)
Shape : Straight
With drain : No
