G 1/2” x G 1/4” Nickel plated Brass Socket 16 Bar [2 Pieces]

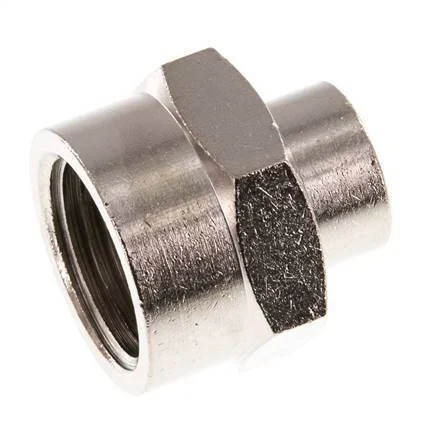

This sleeve (reducing socket) is designed with reducing threads (hexagonal body). Connection 1 has female G 1/2 inch threads. Connection 2 has female G 1/4 inch threads. It is a straight fitting. It is made out of brass and is nickel-plated for surface protection. It has a total length of 23 mm. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi). It has a 27 mm nut to be tightened with a wrench.

FL2S-F series

The FL2S-F series are straight sleeves designed either as reduces or weldable for female threads. They are made out of brass, cast iron, steel, sainless steel, or aluminum.

Specifications

Thread : 1/2 inch
Thread (smaller) : 1/4 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Brass
Max pressure at 20 °C (bar) : 16
Fitting features : Reducing
Model : 1-part
Length (mm) : 23
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
Wrench width (mm) : 27
