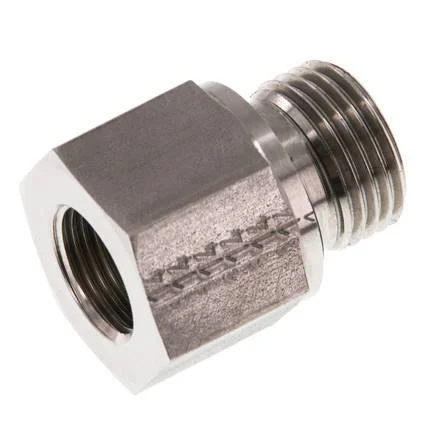

G 1/2” x G 3/8” M/F Stainless steel Reducing Adapter 630 Bar – Hydraulic

This threaded reduction is designed with cylindrical male and female threads. Connection 1 has male G 1/2 inch threads. Connection 2 has female G 3/8 inch threads. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of stainless steel (1.4571). It has a elastomer seal. At 20 °C (68 °F), it can handle a maximum pressure of 630 bar (9138 psi).

FL2S-MF series

The FL2S-MF series are straight reducers with NPT or G male and female threads. They are a 1 part design, made of steel and stainless steel, and capable of pressures up to 630 bar.

Specifications

Thread : 1/2 inch
Thread (smaller) : 3/8 inch
Connection type : Outer thread cylindrical BSPP-G,Inner thread cylindrical BSPP-G
Material : Stainless steel
Seal material : Elastomer
Max pressure at 20 °C (bar) : 630
Fitting features : Hydraulic,Reducing,With gasket
Quality of material : Stainless steel 321 (1.4541)
Model : 1-part
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 321 (1.4541)
Material quality connection 2 : Stainless steel 321 (1.4541)
Shape : Straight
