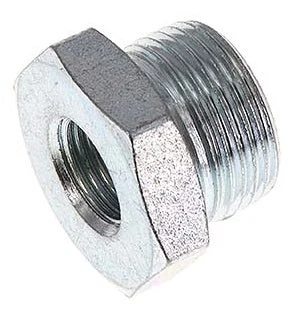

G 1/2” x M22x1.5 F/M Zinc plated Steel Reducing Ring 315 Bar – Hydraulic

This reducing nipple is designed with male and female threads. Connection 1 has female G 1/2 inch threads. It is a straight fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 315 bar (4569 psi). It has a 27 mm nut to be tightened with a wrench.

FL2S-FM series

The FL2S-FM series are straight fittings with one female connection point and one male connection point. Thread standards of NPT, R, Rp, G, and metric are available. They are a 1-part design made out of brass, cast iron, steel, nitrified steel, and stainless steel.

Specifications

Thread : M22 x 1.5
Thread (smaller) : 1/2 inch
Connection type : Outer thread metric,Inner thread cylindrical BSPP-G
Material : Steel
Max pressure at 20 °C (bar) : 315
Fitting features : Hydraulic,Reducing
Model : 1-part
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
Wrench width (mm) : 27
