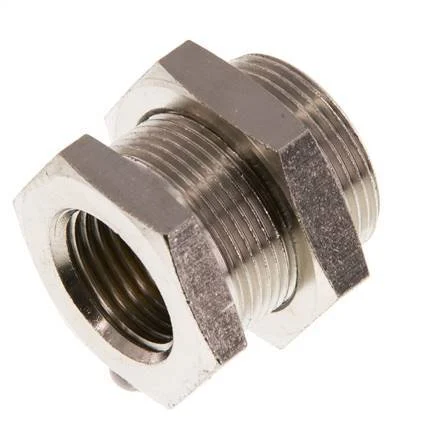

G 1/2” x M28x1.5 F/M Nickel plated Brass Bulkhead Fitting 16 Bar

This bulkhead screw connection is designed with a female and a male connection point for reducing connection diameters. Connection 1 has female G 1/2 inch threads. It is a straight fitting. It is made out of brass and is nickel-plated for surface protection. It has a total length of 33 mm. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi). It has a 32 mm nut to be tightened with a wrench.

FL2S-FM-B series

The FL2S-FM-B series are straight bulkhead connections to connect a female and male connection point. From G or metric threads to G or metric threads. They are made out of brass or stainless steel they also come with a nut.

Specifications

Thread : M28 x 1.5
Thread (smaller) : 1/2 inch
Connection type : Inner thread cylindrical BSPP-G,Outer thread metric
Material : Brass
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 16
Fitting features : Bulkhead,Reducing
Model : 2-part
Length (mm) : 33
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
With drain : No
Wrench width (mm) : 32
