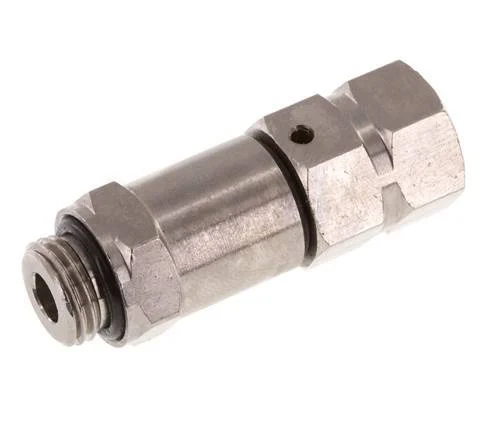

G 1/4” M/F Nickel plated Brass Swivel Joint 10 Bar – High speed

This quick swivel joint is designed with male to female threads. Connection 1 has male G 1/4 inch threads. Connection 2 has female G 1/4 inch threads. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of brass and is nickel-plated for surface protection. It has a NBR seal. It is suitable for media within a temperature range of 0 °C to 60 °C (32 °F to 140 °F). At 20 °C (68 °F), it can handle a maximum pressure of 10 bar (145 psi). It is suitable for vacuum applications. It can withstand 1200 rotations per minute.

Pros:

• It is suitable for vacuum applications.

FL2S-MF-QV series

The FL2S-MF-QV series are straight rotary fittings with male G threads to female G threads. They are capable of rotating up to 1,500 rpm and are made of brass.

Specifications

Thread : 1/4 inch
Thread (smaller) : 1/4 inch
Connection type : Outer thread cylindrical BSPP-G,Inner thread cylindrical BSPP-G
Material : Brass
Seal material : NBR (nitrile rubber)
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 10
Min temperature (°C) : 0
Max temperature (°C) : 60
Fitting features : Quick swivel joints,For vacuum,With gasket
Model : 1-part
Max. number of revolutions (Rpm) : 1200
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
With drain : No
