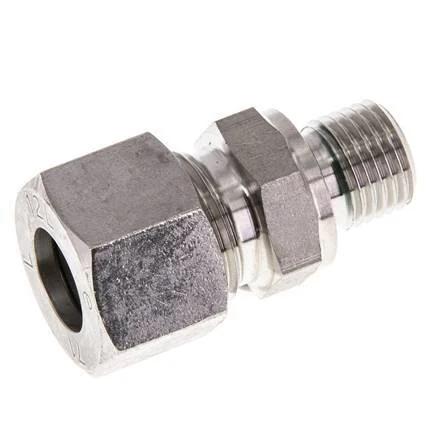

G 1/4” Male x 12L Stainless steel Straight Cutting Ring with FKM Seal 315 Bar DIN 2353

This straight screw in connection is designed with male threads and a cutting ring fitting connection. Connection 1 has male G 1/4 inch threads. Connection 2 is a 12 mm cutting ring. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of stainless steel (1.4571). It has a FKM / PTFE seal. It is suitable for media within a temperature range of -20 °C to 200 °C (-4 °F to 392 °F). At 20 °C (68 °F), it can handle a maximum pressure of 315 bar (4569 psi). According to the DIN 2353, it has an L (light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353). They have a 3-part design.

Cons:

• Since it has a cutting ring connection, it can only be used once

FL2S-MC series

The FL2S-MC series are straight fittings with NPT, G, R, metric or metric canonical male threads to a either a compression ring or cutting ring connection point. 3-part design made out of brass, steel, or stainless steel.

Specifications

Thread : 1/4 inch
Load class (DIN 2353) : L (light)
Cutting ring connection (mm) : 12
Connection type : Outer thread cylindrical BSPP-G
Material : Stainless steel
Seal material : FKM (FPM)
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 315
Min temperature (°C) : -20
Max temperature (°C) : 200
Standard : DIN EN ISO 8434-1 (DIN 2353)
Fitting features : With gasket
Quality of material : Stainless steel 321 (1.4541)
Model : 3-part
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 321 (1.4541)
Material quality connection 2 : Stainless steel 321 (1.4541)
Shape : Straight
With drain : No
