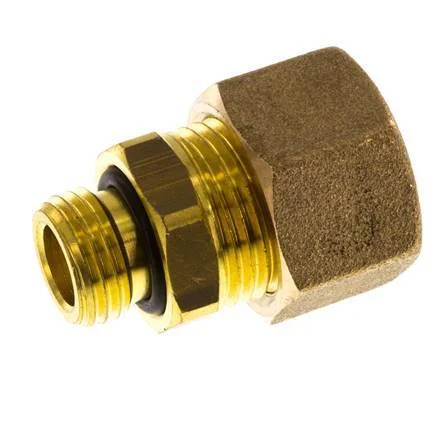

G 1/4” Male x 12mm Brass Straight Compression Fitting with NBR Seal 75 Bar DIN EN 1254-2

This straight screw in connection is designed with male threads and a compression ring fitting connection. Connection 1 has male G 1/4 inch threads. Connection 2 is a 12 mm compression ring. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of brass. It has a NBR seal. It is suitable for media within a temperature range of -20 °C to 80 °C (-4 °F to 176 °F). At 20 °C (68 °F), it can handle a maximum pressure of 75 bar (1088 psi). It is made in accordance with the DIN EN 1254-2. They have a 3-part design.

Cons:

• Since it has a compression ring connection, it can only be used once

FL2S-MC series

The FL2S-MC series are straight fittings with NPT, G, R, metric or metric canonical male threads to a either a compression ring or cutting ring connection point. 3-part design made out of brass, steel, or stainless steel.

Specifications

Thread : 1/4 inch
Compression ring connection (mm) : 12
Connection type : Outer thread cylindrical BSPP-G
Material : Brass
Seal material : NBR (nitrile rubber)
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 75
Min temperature (°C) : -20
Max temperature (°C) : 80
Standard : DIN EN 1254-2
Fitting features : With gasket
Model : 3-part
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
With drain : No
