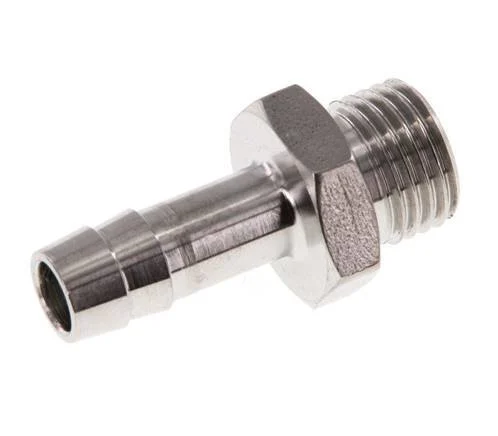

G 1/4” Male x 8mm Stainless steel Hose barb 40 Bar

This hose screw connection is designed with a nozzle and a male thread. Connection 1 has male G 1/4 inch threads. Connection 2 is a hose pillar, designed for a hose with an inner diameter of 8 mm. It is a straight fitting. It is made out of stainless steel (1.4571). At 20 °C (68 °F), it can handle a maximum pressure of 40 bar (580 psi). It has a 17 mm nut to be tightened with a wrench.

FL2S-MH series

The FL2S-MH series are hose barbs with male threads. They are made out of brass, stainless steel, steel or plastic. Available with G-, R-, and NPT thread. Suitable for a max pressure up to 40 bar.

Specifications

Thread : 1/4 inch
Hose pillar connection : 8 mm
Connection type : Outer thread cylindrical BSPP-G
Material : Stainless steel
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 40
Threaded end seal 2 : Inside cone
Quality of material : Stainless steel 321 (1.4541)
Model : 1-part
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 321 (1.4541)
Material quality connection 2 : Stainless steel 321 (1.4541)
Shape : Straight
With drain : No
Wrench width (mm) : 17
