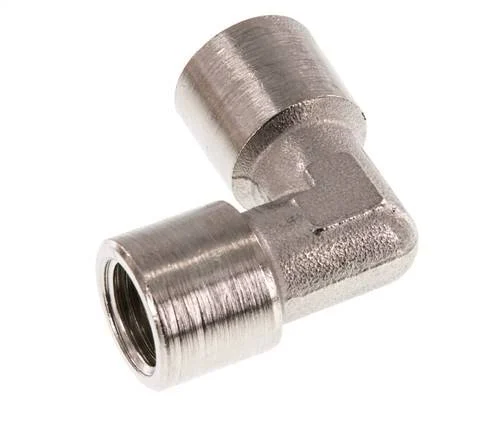

G 1/4” Nickel plated Brass 90 deg Elbow Fitting 16 Bar [2 Pieces]

This elbow is designed with female threads at an angle. Connection 1 has female G 1/4 inch threads. Connection 2 has female G 1/4 inch threads. It is an elbow fitting. It is made out of brass and is nickel-plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi). The input and the output are at a 90° angle.

FL2E-F series

The FL2E-F series are elbow fittings with female threads. They have 2 ports at either a 45 or 90 degree bend. Made out of brass, steel, cast iron, or stainless steel that has been forged or casted. NPT, G, Rp, or metric threads.

Specifications

Thread : 1/4 inch
Thread (smaller) : 1/4 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Brass
Max pressure at 20 °C (bar) : 16
Model : 1-part
Bend angle (°) : 90
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Elbow
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
